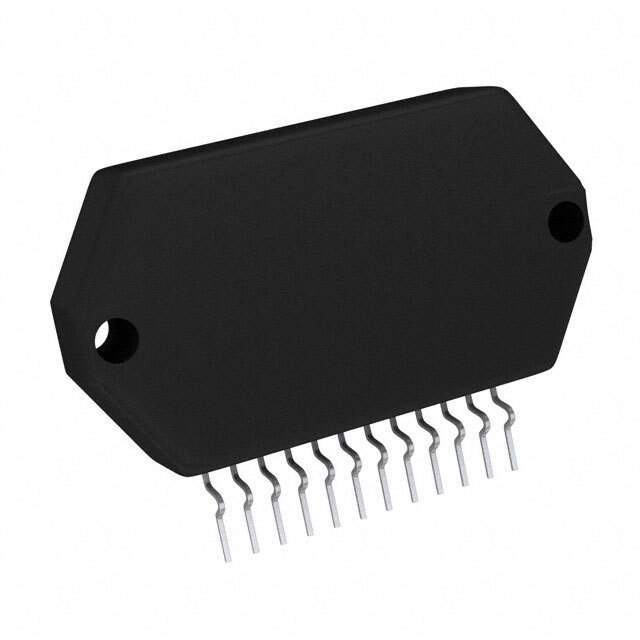

ON Semiconductor STK672-540 Stepper Motor Driver

The STK672-540 from ON Semiconductor is a unipolar 2-phase stepping motor driver that integrates power MOSFETs and a microstepping controller into a single package. This high-performance device is designed to drive a bipolar stepper motor in a microstepping mode, allowing for smoother and more precise motor control. It is an ideal solution for applications requiring precise positioning and repeatability, such as 3D printers, CNC machines, and robotics.

The STK672-540 is capable of driving motors with a wide range of voltages and currents, making it a versatile choice for various designs. It supports operating voltages from 10V to 46V and can deliver an output current of up to 1.5A without a heat sink, or up to 2.8A with proper heat sinking. This allows for the use of the driver in systems with varying power requirements.

One of the key features of the STK672-540 is its built-in microstepping control, which can be configured for full-step, half-step, quarter-step, and 1/8-step, providing flexibility in the resolution of the motor's movement. The microstepping capability significantly reduces noise and vibration, enhancing the performance of the motor and extending its operational life.

The driver module includes various protection features to ensure reliable operation and longevity of the system. It offers thermal shutdown protection, overcurrent protection, and an under-voltage lockout feature. These protective measures safeguard the motor and the driver from potential damage due to abnormal operating conditions.

ON Semiconductor has designed the STK672-540 with simplicity in mind, offering a compact solution that reduces the need for additional components. The integrated design simplifies the circuit layout and reduces the overall footprint, making it an excellent choice for space-constrained applications.

In summary, the STK672-540 stepper motor driver from ON Semiconductor offers a high level of integration, efficiency, and performance for driving stepper motors. Its robust feature set and protective measures make it a reliable and flexible solution for a wide range of precision motion control applications.
