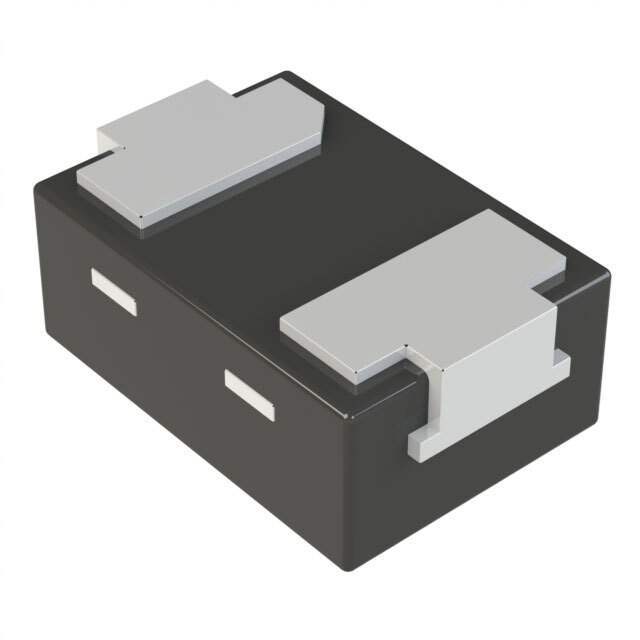

The SZESD8551MXWT5G from ON Semiconductor is a robust ESD protection device, designed to safeguard sensitive electronic components against electrostatic discharge (ESD) and other transient voltage events. This compact and highly efficient component is a crucial addition to any circuit where ESD protection is paramount, such as in consumer electronics, telecommunications, and industrial applications.

Key Features

• Low Clamping Voltage: The SZESD8551MXWT5G offers a low dynamic resistance and clamping voltage, which ensures that the protected device is exposed to minimal stress during an ESD event.
• High ESD Protection: It is capable of withstanding ESD strikes of ±20 kV (air discharge) and ±15 kV (contact discharge) as per the IEC 61000-4-2 standard, providing superior protection for sensitive electronics.
• Small Footprint: The component comes in a compact SOD-323 package, which is ideal for space-constrained applications while still offering excellent ESD suppression capabilities.
• Fast Response Time: It is designed to react quickly to transient events, ensuring that the protected device is shielded from the immediate impact of an ESD strike.
• Low Leakage Current: With a low leakage current, the SZESD8551MXWT5G ensures minimal power loss and preserves the overall energy efficiency of the system.
• RoHS Compliant: This ESD protection device is RoHS compliant, meeting the environmental standards that restrict the use of hazardous substances in electronic components.

Applications

The SZESD8551MXWT5G is versatile and can be used across a wide range of applications. It is particularly well-suited for protecting high-speed data lines and I/O ports in:

• Smartphones and Portable Devices
• Computers and Peripherals
• Audio/Video Inputs
• USB Interfaces
• Network Equipment

In summary, the SZESD8551MXWT5G from ON Semiconductor is an essential component for any design where ESD protection is critical. Its combination of low clamping voltage, high ESD tolerance, and compact form factor makes it an excellent choice for designers looking to enhance the durability and reliability of their electronic products.
