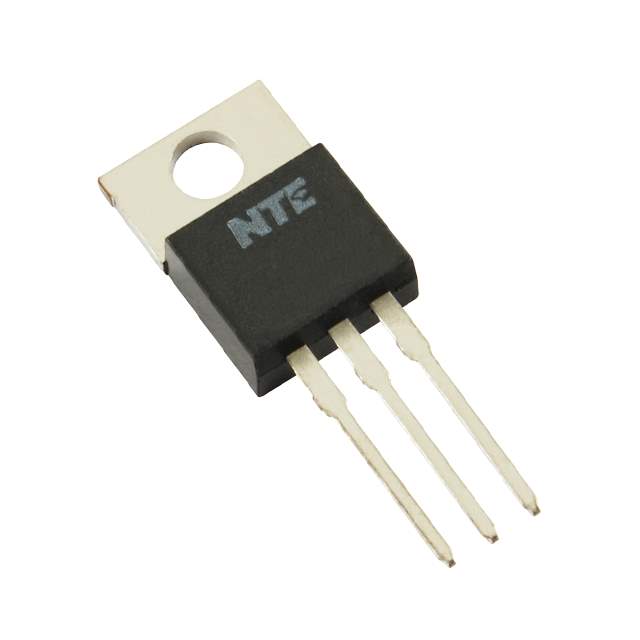

The ON Semiconductor TIP32B is a silicon Epitaxial-Base PNP power transistor housed in a TO-220 type package. This device is designed for use in general-purpose amplifier and switching applications. It is a part of the TIP32 series, which is known for its robust performance and reliability in a wide variety of electronic circuits.
Key Features
- High Current Capability: The TIP32B is capable of handling continuous collector currents up to 3 A, making it suitable for moderate to high-power requirements.
- High Voltage Tolerance: With a collector-emitter voltage (VCEO) of 80V, the TIP32B can accommodate a wide range of voltage applications, providing flexibility in circuit design.
- Complementary NPN Type Available: For applications requiring a push-pull or complementary configuration, the TIP32B has a complementary NPN transistor, the TIP31B, which can be used to create efficient and balanced circuits.
- Low Saturation Voltage: The low collector-emitter saturation voltage of the TIP32B minimizes power loss and improves efficiency, which is critical in power management applications.
Applications
The TIP32B is versatile and can be implemented in various applications, including:
- Power linear and switching
- Audio amplifiers
- Regulators
- DC-DC converters
- Motor controls
Technical Specifications
Parameter
Value
Collector-Emitter Voltage VCEO
80V
Collector Current - Continuous IC
3A
Device Marking
TIP32B
Package / Case
TO-220
Operating Junction Temperature Range
-65°C to +150°C
For detailed information, customers should refer to the TIP32B datasheet provided by ON Semiconductor. The datasheet includes comprehensive technical specifications, pin configurations, and safety guidelines to ensure proper usage and application of the product.
