Product Overview: TIP41AG from ON Semiconductor
The TIP41AG is a versatile NPN bipolar power transistor designed and manufactured by ON Semiconductor. This device is built to handle high power and is commonly used in a wide range of applications, including power linear and switching applications. Its robust design allows for significant levels of current and voltage, making it a popular choice among professionals and hobbyists alike for amplification and switching purposes.
With a collector-emitter voltage (VCEO) of 100V and collector current (IC) capability of up to 6A, the TIP41AG is capable of dissipating power up to 65W at a case temperature of 25°C. The high power dissipation ensures that the transistor can handle heavy loads without overheating, which is critical for maintaining reliability and longevity in electronic circuits.

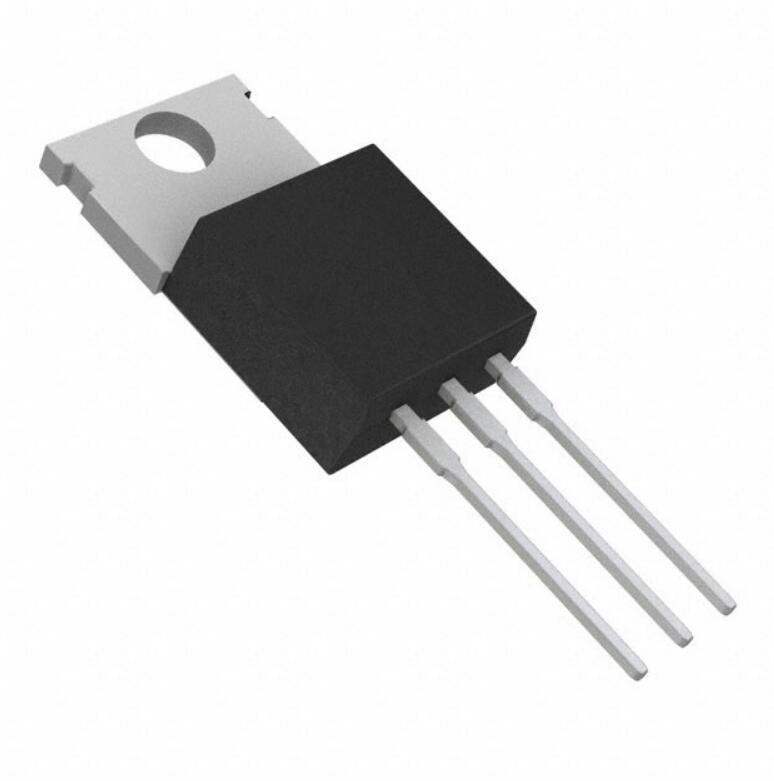

The device comes in a TO-220 package, which is known for its ease of mounting and good thermal performance. The TO-220 package also allows for effective heat sinking, which is vital for maintaining thermal stability during operation. The TIP41AG's package is designed to be compatible with a wide range of standard PCB layouts, simplifying the design and implementation process for engineers.
ON Semiconductor has engineered the TIP41AG with a focus on minimizing on-state saturation voltage, which reduces conduction losses and improves efficiency. This feature, combined with the fast switching speeds, makes the TIP41AG an excellent choice for power amplification in audio systems, power supplies, and motor control circuits.
The TIP41AG also features a high DC current gain (hFE) range, which ensures that the transistor can be driven with relatively low base currents, further enhancing its efficiency in various applications. The product is designed to meet the stringent requirements of the RoHS directive, making it an environmentally friendly option for electronic designs.
In summary, the TIP41AG from ON Semiconductor is a high-performance NPN power transistor that offers reliability, efficiency, and versatility for a multitude of power applications. Its robust construction, combined with the manufacturer's reputation for quality, makes it a solid choice for designers looking to create durable and efficient electronic systems.
