Product Overview: UESD5.0ST5G - ON Semiconductor

The UESD5.0ST5G by ON Semiconductor is a cutting-edge, ultra-low capacitance ESD protection device designed to safeguard high-speed data lines from electrostatic discharge (ESD) and other voltage-induced transient events. This compact, surface-mount component is an essential addition to any design where signal integrity and protection against electrical mishaps are paramount.

Key Features

• Low Clamping Voltage: The device offers excellent clamping characteristics, ensuring that sensitive circuitry is shielded from high voltage transients.
• Ultra-Low Capacitance: With a typical capacitance of just 0.5 pF, the UESD5.0ST5G is ideal for high-speed applications where maintaining signal integrity is crucial.
• ESD Protection: It meets the IEC61000-4-2 standard, providing robust ESD protection up to ±20 kV (air discharge) and ±15 kV (contact discharge), safeguarding your electronics from sudden electrostatic events.
• Fast Response Time: The device reacts swiftly to transient events, offering immediate protection and minimizing the risk of damage to the protected component.
• Low Leakage Current: The minimal leakage current of the UESD5.0ST5G ensures that it does not significantly affect the normal operation of the circuit.
• Bidirectional Design: This feature allows the component to provide protection regardless of the polarity of the ESD strike.

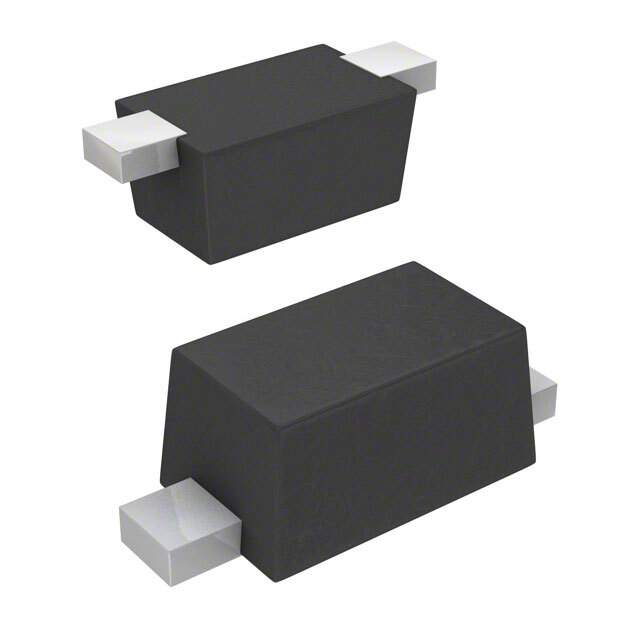

• Surface-Mount Package: The small SOD-523 package is designed for space-constrained applications and is compatible with standard PCB manufacturing processes.

Applications

The UESD5.0ST5G is versatile and can be used in a wide range of applications, including:

• USB 2.0, 3.0, and 3.1 ports
• HDMI 1.3, 1.4, and 2.0 interfaces
• Thunderbolt ports
• DisplayPort interfaces
• Gigabit Ethernet ports
• RF and antenna circuits
• Smartphone and tablet I/O ports
• Other high-speed data and signal lines

With its robust protection features and minimal impact on signal performance, the UESD5.0ST5G from ON Semiconductor is an ideal choice for designers looking to enhance the reliability and longevity of their electronic products.
