Same model may have multiple batches, images only for reference.

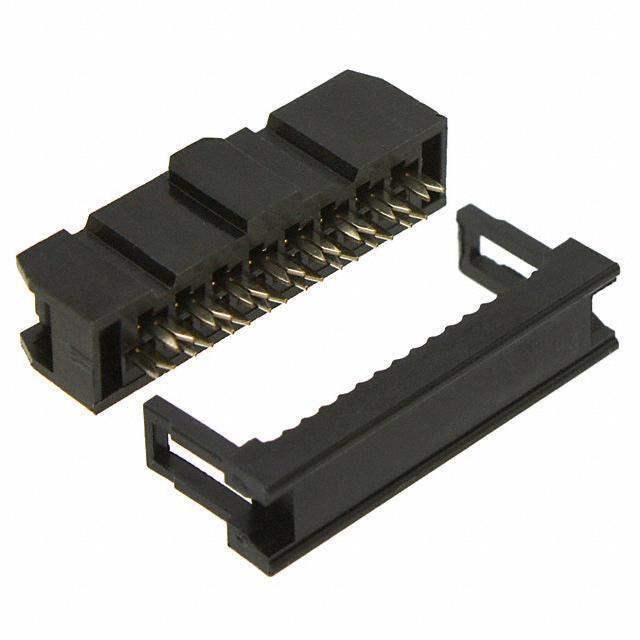

101-166 On Shore Technology Inc.
Same model may have multiple batches, images only for reference.

101-166

Part No 101-166
Manufacturer On Shore Technology Inc.
Catalog Rectangular Connectors
Description CONN SOCKET 16POS IDC GOLD
Datasheet
101-166 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1201180-101-166
Manufacturer On Shore Technology Inc.
Category Connectors, Interconnects -Rectangular Connectors- Free Hanging, Panel Mount
Series 101
Package Tray
Product Status Active
Connector Type Socket
Contact Type Female Socket
Number of Positions 16
Pitch 0.100" (2.54mm)
Number of Rows 2
Ultra Librarian 3D Model Ultra Librarian 101-166 CAD Model

Description

The 101 series socket connector is a reliable and durable electronic component manufactured by On Shore Technology Inc.

  • Product Name: 101 series
  • Manufacturer: On Shore Technology Inc.
  • Connector Type: Rectangular connector
  • Mounting: Free hanging and panel mount
  • Positions: 16
  • Rows: 2
  • Pitch: 0.100" (2.54mm)
  • Connector Type: Socket
  • Contact Type: Female sockets
  • Packaging: Tray
  • Product Status: Active
