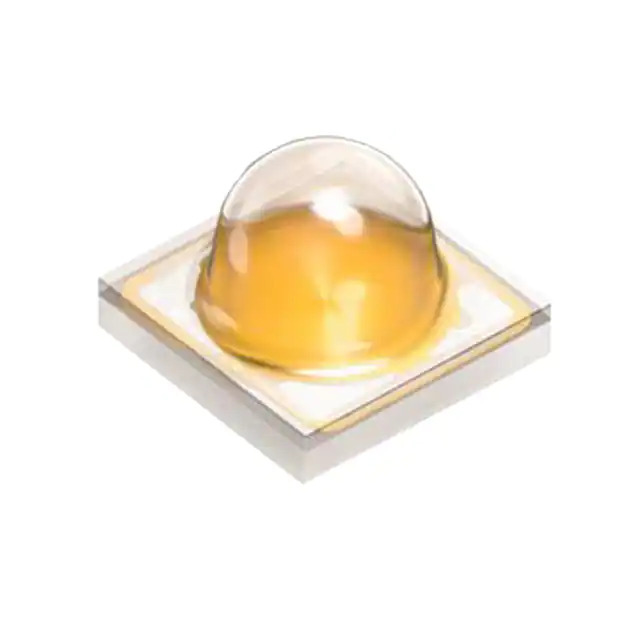

GW CS8PM1.CM-KTLP-XX57-1-350-R18 OSRAM Opto Semiconductors Inc.
Same model may have multiple batches, images only for reference.

GW CS8PM1.CM-KTLP-XX57-1-350-R18

Part No GW CS8PM1.CM-KTLP-XX57-1-350-R18
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog LED Lighting - White
Description LED OSLON WARM WHITE 3000K
Datasheet
GW CS8PM1.CM-KTLP-XX57-1-350-R18 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - White LED Lighting
Mfr ams-OSRAM USA INC.
Series OSLON® SSL 80
Package Tape & Reel
Product Status Active
Color White, Warm
CCT (K) 3000K
Flux @ 85°C, Current - Test 109lm (97lm ~ 121lm)
Flux @ 25°C, Current - Test -
Current - Test 350mA
Voltage - Forward (Vf) (Typ) 2.85V
Lumens/Watt @ Current - Test 109 lm/W
CRI (Color Rendering Index) 90
Current - Max 1.3A
Viewing Angle 80°
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Supplier Device Package SMD
Size / Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) 0.084" (2.13mm)
Thermal Resistance of Package 5.25°C/W
Base Product Number GWCS8PM1.C
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1371911-GW CS8PM1.CM-KTLP-XX57-1-350-R18
Ultra Librarian 3D Model Ultra Librarian GW CS8PM1.CM-KTLP-XX57-1-350-R18 CAD Model

Description

The OSLON® SSL 80 is a white LED lighting component manufactured by ams-OSRAM USA INC.

  • Package / Case: 2-SMD, No Lead
  • Size / Dimension: 0.118" L x 0.118" W (3.00mm x 3.00mm)
  • Height - Seated (Max): 0.084" (2.13mm)
  • Current - Max: 1.3A
  • Voltage - Forward (Vf) (Typ): 2.85V
  • Viewing Angle: 80°
  • Color: White
  • CCT (K): 3000K
  • Flux @ Current/Temperature - Test: 109lm (97lm ~ 121lm) @ 350mA, 85°C
  • Luminous Efficacy @ Current - Test: 109 lm/W
  • CRI (Color Rendering Index): 90
  • Thermal Resistance Package: 5.25°C/W
  • Category: Optoelectronics - White LED Lighting
  • Product Status: Active
