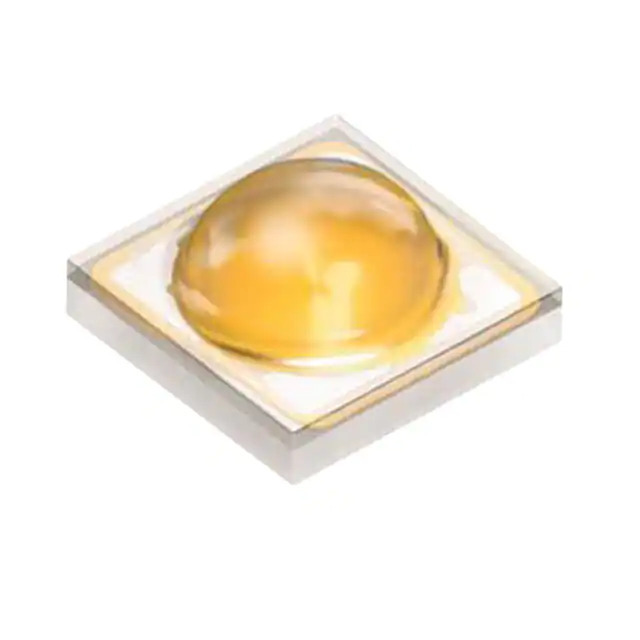

GW CSHPM1.CM-KTLP-XX57-1-350-R18 OSRAM Opto Semiconductors Inc.
Same model may have multiple batches, images only for reference.

GW CSHPM1.CM-KTLP-XX57-1-350-R18

Part No GW CSHPM1.CM-KTLP-XX57-1-350-R18
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog LED Lighting - White
Description LED OSLON WARM WHITE 3000K
Datasheet
GW CSHPM1.CM-KTLP-XX57-1-350-R18 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - White LED Lighting
Mfr ams-OSRAM USA INC.
Series OSLON® SSL 150
Package Tape & Reel
Product Status Active
Color White, Warm
CCT (K) 3000K
Flux @ 85°C, Current - Test 109lm (97lm ~ 121lm)
Flux @ 25°C, Current - Test -
Current - Test 350mA
Voltage - Forward (Vf) (Typ) 2.85V
Lumens/Watt @ Current - Test 109 lm/W
CRI (Color Rendering Index) 90
Current - Max 1.3A
Viewing Angle 150°
Mounting Type Surface Mount
Package / Case 1212 (3030 Metric)
Supplier Device Package SMD
Size / Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) 0.062" (1.58mm)
Thermal Resistance of Package 5.25°C/W
Base Product Number GWCSHPM1.C
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1371877-GW CSHPM1.CM-KTLP-XX57-1-350-R18
Ultra Librarian 3D Model Ultra Librarian GW CSHPM1.CM-KTLP-XX57-1-350-R18 CAD Model

Description

The 1371877-GW CSHPM1.CM-KTLP-XX57-1-350-R18 is a white LED lighting component from the OSLON® SSL 150 series by ams-OSRAM USA INC.

  • Mounting Type: Surface Mount
  • Size: 0.118" L x 0.118" W (3.00mm x 3.00mm)
  • Seated Height: 0.062" (1.58mm)
  • Maximum Current: 1.3A
  • Forward Voltage: 2.85V
  • Viewing Angle: 150°
  • Color Temperature: 3000K
  • Flux @ 85°C, Current-Test: 109lm (97lm ~ 121lm)
  • Efficiency: 109 lm/W
  • Color Rendering Index (CRI): 90
  • Thermal Resistance: 5.25°C/W
