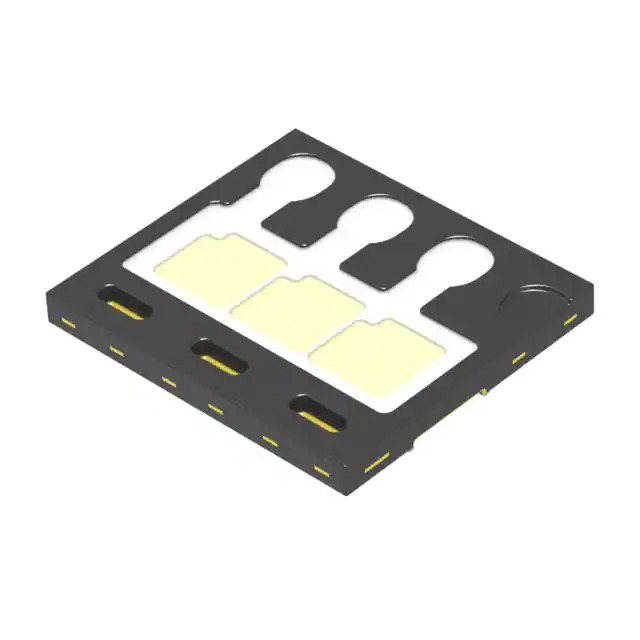

Same model may have multiple batches, images only for reference.
KW H3L531.TE-Z7Q6-EBVFFCBB46-DFYF OSRAM Opto Semiconductors Inc.
Same model may have multiple batches, images only for reference.

KW H3L531.TE-Z7Q6-EBVFFCBB46-DFYF

Part No KW H3L531.TE-Z7Q6-EBVFFCBB46-DFYF
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog LED Lighting - White
Description OSLON BLACK FLAT WHITE
Datasheet
KW H3L531.TE-Z7Q6-EBVFFCBB46-DFYF Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - White LED Lighting
Mfr ams-OSRAM USA INC.
Series OSLON® Black Flat
Package Tape & Reel
Product Status Active
Color White
CCT (K) -
Flux @ 85°C, Current - Test -
Flux @ 25°C, Current - Test -
Current - Test 1A
Voltage - Forward (Vf) (Typ) 9.2V
Lumens/Watt @ Current - Test -
CRI (Color Rendering Index) -
Current - Max 1.2A
Viewing Angle 120°
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Supplier Device Package SMD
Size / Dimension 0.165" L x 0.148" W (4.20mm x 3.75mm)
Height - Seated (Max) 0.019" (0.49mm)
Thermal Resistance of Package 1.3°C/W
Base Product Number KWH3L531
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1371964-KW H3L531.TE-Z7Q6-EBVFFCBB46-DFYF
Ultra Librarian 3D Model Ultra Librarian KW H3L531.TE-Z7Q6-EBVFFCBB46-DFYF CAD Model

Description

The KWH3L531.TE-Z7Q6-EBVFFCBB46-DFYF is an OSLON® Black Flat white LED lighting component manufactured by ams-OSRAM USA INC.

  • Package: 6-SMD, no lead
  • Mounting Type: Surface Mount
  • Size: 0.165" L x 0.148" W (4.20mm x 3.75mm)
  • Seated Height: 0.019" (0.49mm)
  • Maximum Current: 1.2A
  • Forward Voltage (Vf): 9.2V
  • Test Current: 1A
  • Viewing Angle: 120°
  • Application: White LED Lighting
  • Series: OSLON® Black Flat
