Same model may have multiple batches, images only for reference.

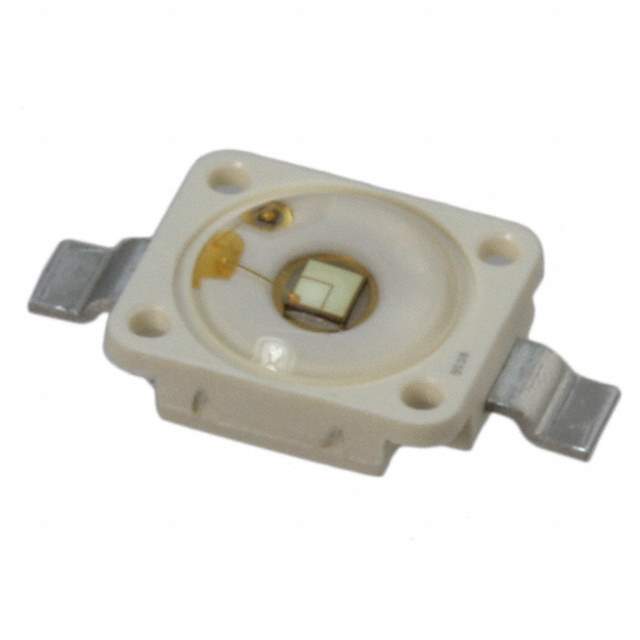

LD W5AM-3T3U-35-Z Real Image
Same model may have multiple batches, images only for reference.

LD W5AM-3T3U-35-Z

Part No LD W5AM-3T3U-35-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog LED Lighting - Color
Description LED DRAGON PLUS BLUE 455NM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer OSRAM Opto Semiconductors Inc.
Packaging Reel
Status Obsolete
Color Blue
Wavelength 455nm (449nm ~ 461nm)
Current - Test 350mA
Voltage - Forward (Vf) 3.2V
Current - Max 1A
Flux at Current/Temperature - Test 493mW (355mW ~ 630mW)
Test Temperature Condition 25°C
Viewing Angle 170°
Mounting Style SMD
Manufacturer Package 2-SMD, Gull Wing
Supplier Device Package SMD
Parts Dimension 0.276" L x 0.236" W (7.00mm x 6.00mm)
Height - Seated (Maximum) 0.122" (3.10mm)
Thermal Resistance of Package 6.5°C/W
Manufacturer Pack Quantity 1
MSL Level 2A (4 Weeks)
Win Source Part Number 739242-LD W5AM-3T3U-35-Z
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LD W5AM-3T3U-35-Z CAD Model

Description

The OSRAM Opto Semiconductors Inc. LD W5AM-3T3U-35-Z is a surface mount device with a blue color and a viewing angle of 170°.

  • Maximum Current: 1A
  • Test Current: 350mA
  • Thermal Resistance: 6.5°C/W
  • Voltage Forward: 3.2V
  • Packaging: Reel
  • Manufacturer Pack Quantity: 1
  • Flux @ Current/Temperature Test: 493mW (355mW ~ 630mW)
  • Test Temperature Condition: 25°C
