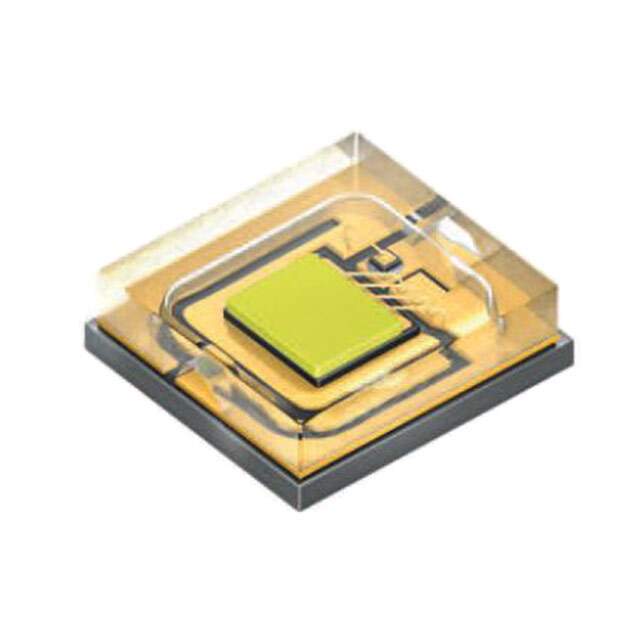

LE UW Q8WP-NBPB-BQ-0-A40-R18-Z Real Image
Same model may have multiple batches, images only for reference.

LE UW Q8WP-NBPB-BQ-0-A40-R18-Z

Part No LE UW Q8WP-NBPB-BQ-0-A40-R18-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog LED Lighting - White
Description LED OSTAR COMPACT 8SMD / LED Lighting series White 3.05V 1.4A 130° 2-SMD, No Lead Exposed Pad
Datasheet
LE UW Q8WP-NBPB-BQ-0-A40-R18-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr ams-OSRAM USA Inc.
Series OSTAR Projection Compact
Package Tape & Reel
Color White
Flux @ 25°C, Current - Test 533lm (Typ)
Current - Test 1.4A
Voltage - Forward (Vf) (Typ) 3.05V
Current - Max 5A
Viewing Angle 130°
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead Exposed Pad
Supplier Device Package SMD
Dimension 0.154" L x 0.144" W (3.90mm x 3.65mm)
Height - Seated (Max) 0.053" (1.35mm)
Thermal Resistance of Package 2.6°C/W
Base Product Number LEUWQ8WP
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names LE UW Q8WP-NBPB-BQ-0-A40-R18-Z-ND,LEUWQ8WP-NBPB-BQ-0-A40-R18-Z,Q65112A4111,LE UW Q8WP-NBPB-BQ,LEUWQ8WP-NBPB-BQ-0-A40-R18-Z-ND,475-3753-6,475-3753-1,475-3753-2
Standard Package 1,000
Win Source Part Number 1069270-LE UW Q8WP-NBPB-BQ-0-A40-R18-Z
Ultra Librarian 3D Model Ultra Librarian LE UW Q8WP-NBPB-BQ-0-A40-R18-Z CAD Model

Description

The ams-OSRAM USA Inc. LED Lighting - White is a SMD (SMT) device used in optoelectronics.

  • Viewing Angle: 130°
  • Voltage Forward: 3.05V
  • Standard Package: 1,000
  • Mounting Type: SMD (SMT)
  • Height: 0.053” (1.35mm)
  • Thermal Resistance of Package: 2.6°C/W
  • Current Rating: 5A
  • Current Test: 1.4A
  • Flux: 533lm (Typ) @ 25°C, current-test
