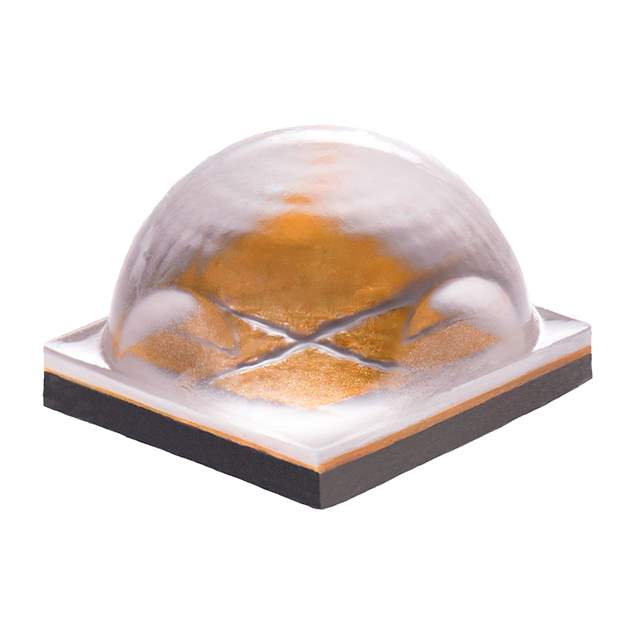

XHP50B-00-0000-0D0UH20E3 Real Image
Same model may have multiple batches, images only for reference.

XHP50B-00-0000-0D0UH20E3

Part No XHP50B-00-0000-0D0UH20E3
Manufacturer CreeLED, Inc.
Catalog LED Lighting - White
Description LED XLAMP XH-P50.2 / LED Lighting XLamp® XHP50.2 White, Cool 5000K 6V, 12V 1.4A, 700mA 120° 2020 (5050 Metric)
Datasheet
XHP50B-00-0000-0D0UH20E3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - White LED Lighting
Mfr CreeLED, Inc.
Series XLamp® XHP50.2
Package Tape & Reel
Color White, Cool
CCT (K) 5000K
Flux @ 85°C, Current - Test 935lm (900lm ~ 970lm)
Current - Test 1.4A, 700mA
Voltage - Forward (Vf) (Typ) 6V, 12V
Lumens/Watt @ Current - Test 119 lm/W
CRI (Color Rendering Index) 90
Current - Max 3A, 1.5A
Viewing Angle 120°
Mounting Type Surface Mount
Package / Case 2020 (5050 Metric)
Supplier Device Package 2-SMD
Size / Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) 0.143" (3.63mm)
Thermal Resistance of Package 1.2°C/W
Base Product Number XHP50B
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1349238-XHP50B-00-0000-0D0UH20E3
Ultra Librarian 3D Model Ultra Librarian XHP50B-00-0000-0D0UH20E3 CAD Model

Description

The XLamp XHP50.2 is a white, cool LED lighting component manufactured by CreeLED, Inc.

  • Standard Package: 500
  • Thermal Resistance of Package: 1.2°C/W
  • Package / Case: 2020 (5050 Metric)
  • Supplier Device Package: 2-SMD
  • Voltage - Forward (Vf) (Typ): 6V and 12V
  • Viewing Angle: 120°
  • Color Rendering Index (CRI): 90
  • Flux @ 85°C, Current - Test: 935lm (900lm ~ 970lm)
  • Lumens/Watt @ Current - Test: 119 lm/W
  • Current - Max: 3A and 1.5A
  • Current - Test: 1.4A and 700mA
  • Application: Optoelectronics, White LED Lighting
