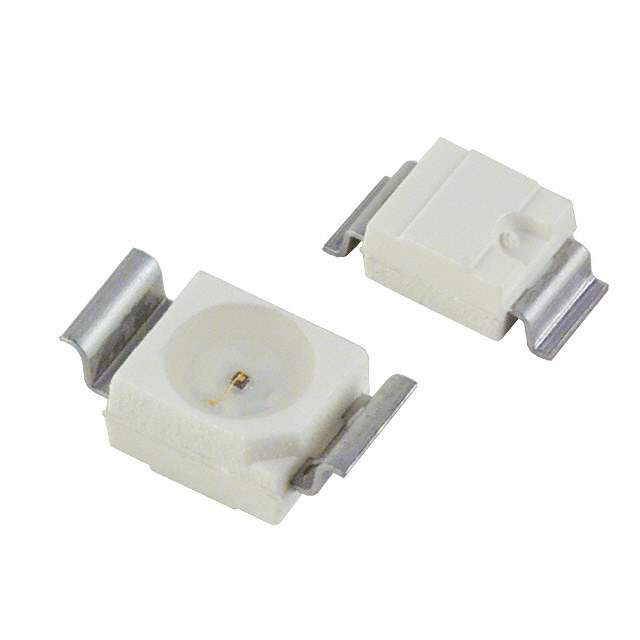

LO T770-J1L2-24 Real Image
Same model may have multiple batches, images only for reference.

LO T770-J1L2-24

Part No LO T770-J1L2-24
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Optics - LEDs - Light Pipes
Description Top LED, Colorless Clear, Orange(600-609 nm)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Height 5.2 mm
Length 3.2 mm
Luminous Flux 35.5 mlm
Luminous Intensity 11.3 mcd
Maximum Operating Temperature 100 °C
Min Operating Temperature -40 °C
Viewing Angle 120 °
Width 2.8 mm
Win Source Part Number 1006645-LO T770-J1L2-24
Categories Optics - LEDs - Light Pipes
Manufacturer OSRAM Opto Semiconductors Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian LO T770-J1L2-24 CAD Model

Description

The OSRAM Opto Semiconductors Inc. 1006645-LO T770-J1L2-24 is a light pipe with a length of 3.2mm, height of 5.2mm, and width of 2.8mm.

  • Viewing Angle: 120 °
  • Luminous Intensity: 11.3 mcd
  • Luminous Flux: 35.5 mlm
  • Operating Temperature Range: -40 °C to 100 °C
  • Used in: optics, LEDs, and light pipes
  • Market Status: currently facing a shortage in the market
