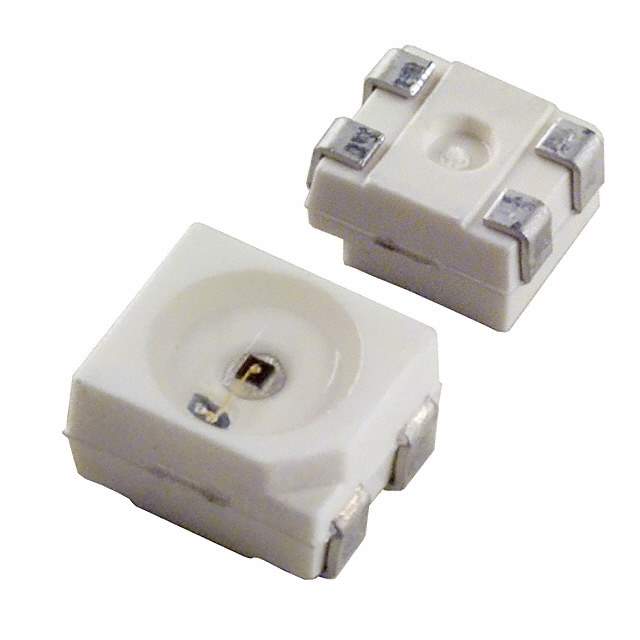

LY E67B-T2V1-26-1-Z Real Image
Same model may have multiple batches, images only for reference.

LY E67B-T2V1-26-1-Z

Part No LY E67B-T2V1-26-1-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Optics - LEDs - Light Pipes
Description LED Uni-Color Yellow 594nm Automotive 4-Pin PLCC T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package PLCC
Color Yellow
Depth 3.4 mm
Dominant Wavelength 587 nm
Forward Current 70 mA
Forward Voltage 2.5 V
Length 3 mm
Lens Style Circular, Colorless, Diffused
Luminous Flux 1.9 lm
Luminous Intensity 900 mcd
Maximum Operating Temperature 100 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Elements 1
Number of LEDs 1
Number of Pins 4
Power Dissipation 180 mW
Radiation Hardening No
Reverse Voltage 12 V
RoHS Compliant
Schedule B 8541402000, 8541402000
Test Current 50 mA
Viewing Angle 120 °
Win Source Part Number 960381-LY E67B-T2V1-26-1-Z
Categories Optics - LEDs - Light Pipes
Manufacturer OSRAM Opto Semiconductors Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian LY E67B-T2V1-26-1-Z CAD Model

Description

The OSRAM Opto Semiconductors Inc. LED component with a TOPLED® black surface series and a yellow color.

  • Packaging: Digi-Reel®
  • Case/Package: PLCC
  • Length: 3mm
  • Luminous Intensity: 900mcd
  • Power Dissipation: 180mW
  • Forward Current: 70mA
  • Forward Voltage: 2.5V
  • Viewing Angle: 120 °
  • Luminous Flux: 1.9 lm
  • REACH: Unaffected
  • ECCN: EAR99
  • HTSUS: 8541.40.2000
