Same model may have multiple batches, images only for reference.

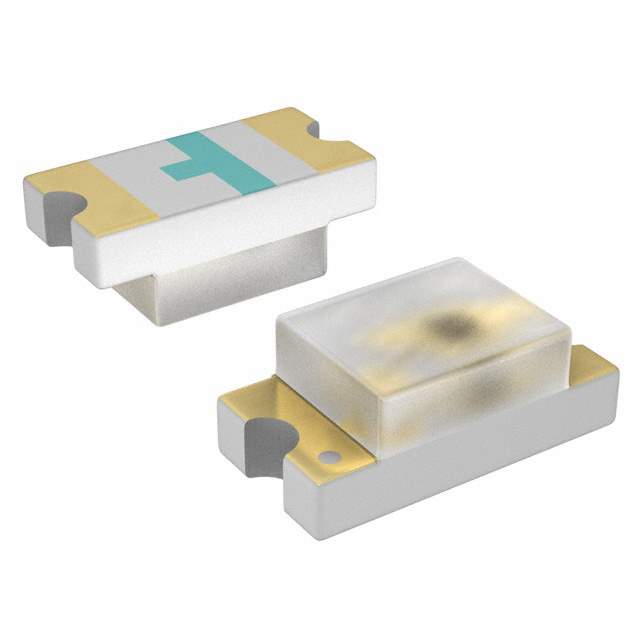

LYR971 Real Image
Same model may have multiple batches, images only for reference.

LYR971

Part No LYR971
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog OEM Parts (J - L)
Description Single Color LED, Yellow, Colorless Diffused, 1.3mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package 0805
Color Yellow
Depth 1.35 mm
Dominant Wavelength 590 nm
Forward Current 20 mA
Forward Voltage 2.6 V
Length 2.1 mm
Lens Style Colorless, Diffused
Luminous Flux 28 mlm
Luminous Intensity 18 mcd
Maximum Operating Temperature 85 °C
Min Operating Temperature -30 °C
Mount Surface Mount
Number of Elements 1
Number of Pins 2
Packaging Tape and Reel
Power Dissipation 65 mW
Radiation Hardening No
Reverse Voltage 12 V
RoHS Compliant
Test Current 20 mA
Viewing Angle 160 °
Wavelength 592 nm
Win Source Part Number 1073322-LYR971
Categories OEM Parts(J-L)
Manufacturer OSRAM Opto Semiconductors Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian LYR971 CAD Model

Description

The OSRAM Opto Semiconductors Inc. LYR971 is a surface-mount, right-angle LED component that has a yellow color and is packaged in a tape and reel.

  • Length: 2.1mm
  • Mounting Style: SMD (SMT)
  • Number of Elements: 1
  • Forward Voltage: 2.6V
  • Luminous Intensity: 18mcd
  • Power Dissipation: 65mW
  • Forward Current: 20mA
  • Reverse Voltage: 12V
  • Viewing Angle: 160 degrees
  • Number of Pins: 2
  • Wavelength: 592nm
  • Luminous Flux: 28 mlm
  • Category: OEM Parts(J-L)
  • Popularity: Low
  • RoHS Compliant: Yes
  • Maximum Operating Temperature: 85 degrees Celsius
  • Depth: 1.35mm
  • Mount: Surface Mount
  • Dominant Wavelength: 590nm
  • Lens Style: Colorless, Diffused
