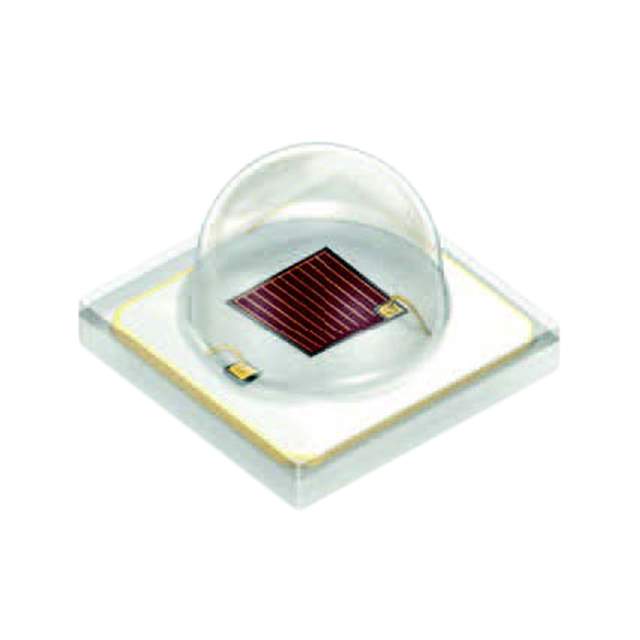

Same model may have multiple batches, images only for reference.

GR CS8PM1.23-JUKQ-1-0-350-R18

Name: GR CS8PM1.23-JUKQ-1-0-350-R18
Brand: OSRAM Opto Semiconductors Inc.
SKU: 1345859
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	GR CS8PM1.23-JUKQ-1-0-350-R18
Manufacturer	OSRAM Opto Semiconductors Inc.
Catalog	LED Lighting - Color
Description	LED OSLON SSL80 RED 626NM SMD / LED Lighting Color OSLON® SSL 80 Red 626nm (620nm ~ 632nm) 1212 (3030 Metric)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Optoelectronics - Color LED Lighting
Mfr	ams-OSRAM USA Inc.
Series	OSLON® SSL 80
Package	Tape & Reel
Product Status	Obsolete
Color	Red
Wavelength	626nm (620nm ~ 632nm)
Current - Test	350mA
Voltage - Forward (Vf) (Typ)	2.1V
Lumens/Watt @ Current - Test	101 lm/W
Current - Max	1A
Luminous Flux @ Current/Temperature	74lm (66lm ~ 82lm)
Temperature - Test	25°C
Viewing Angle	80°
Mounting Type	Surface Mount
Package / Case	1212 (3030 Metric)
Supplier Device Package	SMD
Size / Dimension	0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max)	0.091" (2.31mm)
Thermal Resistance of Package	5.3°C/W
Base Product Number	GRCS8PM
Standard Package	600
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.41.0000
Win Source Part Number	1345859-GR CS8PM1.23-JUKQ-1-0-350-R18
Ultra Librarian 3D Model	Ultra Librarian GR CS8PM1.23-JUKQ-1-0-350-R18 CAD Model

Alternative Products

Description

The GRCS8PM1.23-JUKQ-1-0-350-R18 is a red color LED lighting component from ams-OSRAM USA Inc.

Series: OSLON® SSL 80
Package Size: 0.118" L x 0.118" W (3.00mm x 3.00mm)
Viewing Angle: 80°
Height: 0.091" (2.31mm)
Standard Package: 600
Maximum Current: 1A
Wavelength: 626nm (620nm ~ 632nm)
Lumens/Watt @ Current Test: 101 lm/W
Thermal Resistance: 5.3°C/W
Operating Temperature: 25°C
Mounting Type: Surface Mount
Package/Case: 1212 (3030 Metric)
ECCN: EAR99
