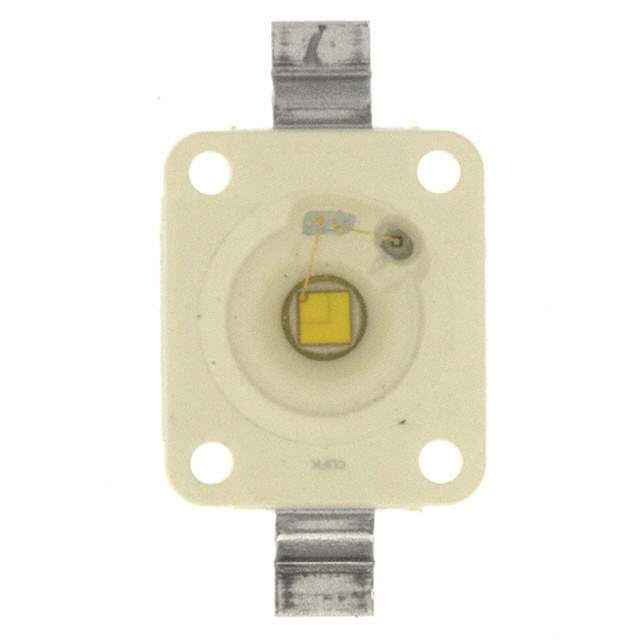

LCW W5SN-KXLX-4U9X-0-700-R18-Z Real Image
Same model may have multiple batches, images only for reference.

LCW W5SN-KXLX-4U9X-0-700-R18-Z

Part No LCW W5SN-KXLX-4U9X-0-700-R18-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog LED Lighting - White
Datasheet
LCW W5SN-KXLX-4U9X-0-700-R18-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr ams-OSRAM USA Inc.
Series Platinum DRAGON
Package Tape & Reel (TR)
Product Status Obsolete
Color White, Warm
CCT (K) 2700K
Flux @ 25°C, Current - Test 101lm (71lm ~ 130lm)
Current - Test 700mA
Voltage - Forward (Vf) (Typ) 3.6V
Lumens/Watt @ Current - Test 40 lm/W
CRI (Color Rendering Index) 80
Current - Max 1A
Viewing Angle 120°
Mounting SMD (SMT)
Package / Case 2-SMD, Gull Wing Exposed Pad
Supplier Device Package 2-SMD
Dimension 0.276" L x 0.236" W (7.00mm x 6.00mm)
Height - Seated (Max) 0.079" (2.00mm)
Thermal Resistance of Package 11°C/W
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1314654-LCW W5SN-KXLX-4U9X-0-700-R18-Z
Ultra Librarian 3D Model Ultra Librarian LCW W5SN-KXLX-4U9X-0-700-R18-Z CAD Model

Description

The Platinum DRAGON LED is a high-performance optoelectronic component designed for LED lighting applications.

  • Color: White and Warm Colors
  • Viewing Angle: 120 degrees
  • Maximum Current: 1A
  • Voltage: 3.6V
  • CCT: 2700K
  • CRI: 80
  • Thermal Resistance: 11 degrees Celsius per watt
  • Package: 2-SMD, Gull Wing Exposed Pad
  • Dimension: 0.276 inches in length and 0.236 inches in width
