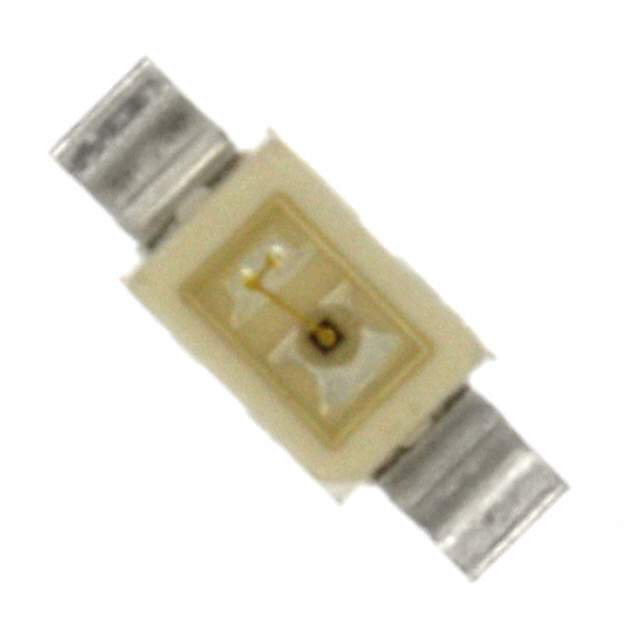

LG M47K-H1J2-24-Z Real Image
Same model may have multiple batches, images only for reference.

LG M47K-H1J2-24-Z

Part No LG M47K-H1J2-24-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog LED Indication - Discrete
Datasheet
LG M47K-H1J2-24-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr ams-OSRAM USA Inc.
Series Mini TOPLED® Santana
Package Tape & Reel (TR)
Product Status Obsolete
Color Green
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 4.95mcd
Lens Style Rectangle with Flat Top
Lens Size 1.50mm x 1.00mm
Voltage - Forward (Vf) (Typ) 1.8V
Current - Test 2mA
Viewing Angle 120°
Mounting Type Surface Mount, Bottom Entry
Wavelength - Dominant 570nm
Wavelength - Peak 572nm
Package / Case 2-SMD, Z-Bend
Supplier Device Package SMD
Dimension 4.00mm L x 1.40mm W
Height (Max) 1.50mm
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1315428-LG M47K-H1J2-24-Z
Ultra Librarian 3D Model Ultra Librarian LG M47K-H1J2-24-Z CAD Model

Description

The ams-OSRAM USA Inc. LED indication component is a green Mini TOPLED® Santana series component.

  • Viewing Angle: 120 degrees
  • Millicandela Rating: 4.95mcd
  • Voltage - Forward (Vf): 1.8V
  • Current - Test: 2mA
  • Wavelength - Dominant: 570nm
  • Wavelength - Peak: 572nm
  • Mounting Type: Surface Mount
  • Configuration: Bottom Entry
