Same model may have multiple batches, images only for reference.

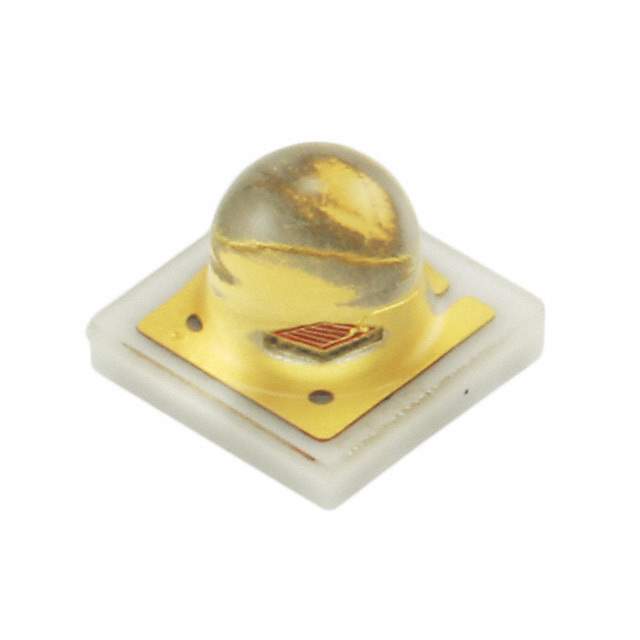

LA CN5M-FBGB-24-1-140-R18-Z Real Image
Same model may have multiple batches, images only for reference.

LA CN5M-FBGB-24-1-140-R18-Z

Part No LA CN5M-FBGB-24-1-140-R18-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog LED Lighting - Color
Datasheet
LA CN5M-FBGB-24-1-140-R18-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - Color
Mfr ams-OSRAM USA Inc.
Series OSLON® SX
Package Tape & Reel
Color Amber
Wavelength 618nm (612nm ~ 624nm)
Current - Test 140mA
Voltage - Forward (Vf) (Typ) 2.15V
Lumens/Watt @ Current - Test 56 lm/W
Current - Max 200mA
Luminous Flux @ Current/Temperature 17lm (11lm ~ 22lm)
Temperature - Test 25°C
Viewing Angle 60°
Mounting SMD (SMT)
Package / Case 1212 (3030 Metric)
Supplier Device Package SMD
Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) 0.100" (2.55mm)
Thermal Resistance of Package 30°C/W
Base Product Number LACN5M
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1315411-LA CN5M-FBGB-24-1-140-R18-Z
Ultra Librarian 3D Model Ultra Librarian LA CN5M-FBGB-24-1-140-R18-Z CAD Model

Description

The ams-OSRAM USA Inc. OSLON SX Amber LED Lighting - Color is a high-performance optoelectronic component.

  • Mounting Type: surface mount
  • Viewing Angle: 60 degrees
  • Forward Voltage: 2.15V
  • Maximum Current: 200mA
  • Test Current: 140mA
  • Thermal Resistance: 30 degrees Celsius per watt
  • Luminous Flux: 17lm @ a current of 140mA
  • Wavelength: 618nm, with a range of 612nm to 624nm
  • Package Size: 1212 (3030 Metric)
  • Packaging: tape and reel
  • Height: 0.100" (2.55mm)
  • Dimension: 0.118" L x 0.118" W (3.00mm x 3.00mm)
