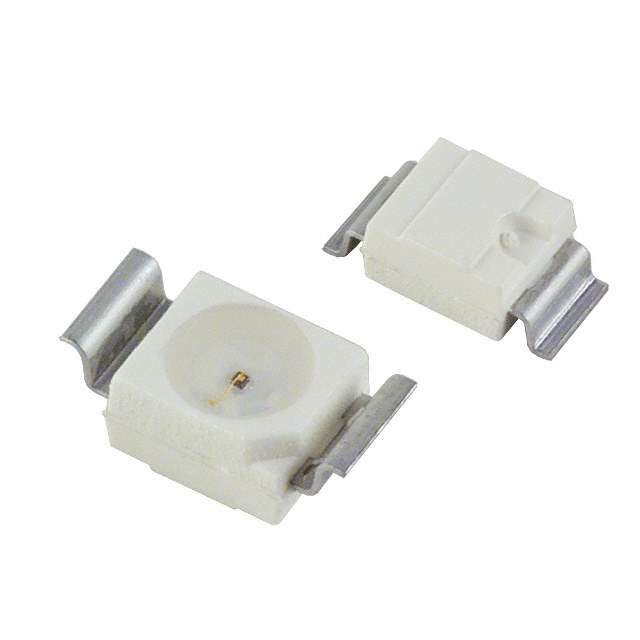

The 1314828-LO T770-J1L2-24-Z is an orange LED indication discrete component from the TOPLED® - Reverse Gullwing series.

• Configuration: It features a standard configuration.
• Viewing Angle: a viewing angle of 120 degrees.
• Lens Transparency: colorless lens transparency.
• Millicandela Rating: This LED has a millicandela rating of 11.25mcd.
• Forward Voltage: a forward voltage of 2V (typical).
• Test Current: a test current of 10mA.
• Peak Wavelength: The peak wavelength is 610nm.
• Dominant Wavelength: dominant wavelength is 606nm.
• Mounting: The product is mounted using surface mount, bottom entry.
• Package: comes in a 2-SMD, Z-Bend package/case.
• Lens Style: The lens style is round with a flat top.
• Lens Size: The lens size is 2.40mm diameter.
• REACH: The product is REACH unaffected.
• ECCN: has an ECCN of EAR99.
