Same model may have multiple batches, images only for reference.

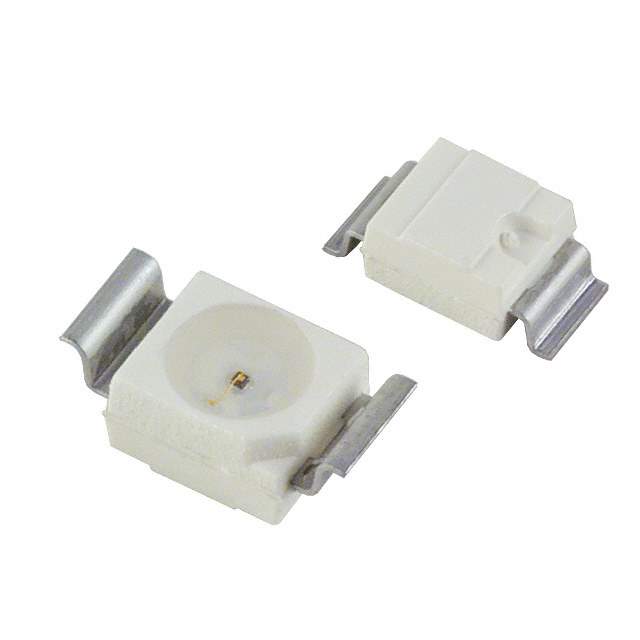

LP T770-G2J2-1-0-10-R18-Z Real Image
Same model may have multiple batches, images only for reference.

LP T770-G2J2-1-0-10-R18-Z

Part No LP T770-G2J2-1-0-10-R18-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog LED Indication - Discrete
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr ams-OSRAM USA Inc.
Series TOPLED® - Reverse Gullwing
Package Tape & Reel (TR)
Product Status Obsolete
Color Green
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 4.67mcd
Lens Style Round with Flat Top
Lens Size 2.40mm Dia
Voltage - Forward (Vf) (Typ) 2V
Current - Test 10mA
Viewing Angle 120°
Mounting Type Surface Mount, Bottom Entry
Wavelength - Dominant 560nm
Wavelength - Peak 557nm
Package / Case 2-SMD, Z-Bend
Supplier Device Package SMD
Dimension 3.20mm L x 2.80mm W
Height (Max) 2.10mm
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1314621-LP T770-G2J2-1-0-10-R18-Z
Ultra Librarian 3D Model Ultra Librarian LP T770-G2J2-1-0-10-R18-Z CAD Model

Description

The TOPLED® - Reverse Gullwing LED Indication - Discrete component from ams-OSRAM USA Inc. is a green LED with a viewing angle of 120°.

  • Color: Green
  • Viewing Angle: 120°
  • Lens Color: Colorless
  • Lens Transparency: Clear
  • Lens Shape: Round with a flat top
  • Millicandela Rating: 4.67mcd
  • Forward Voltage: 2V
  • Test Current: 10mA
  • Wavelength-Dominant: 560nm
  • Wavelength-Peak: 557nm
  • Package: Tape & Reel (TR)
  • Case: 2-SMD, Z-Bend
  • Mounting Type: Surface-Mounted, with bottom entry
  • Status: Obsolete
  • ECCN: EAR99
  • MSL Level: 2 (1 Year)
  • REACH: Unaffected
  • HTSUS: 8541.41.0000
