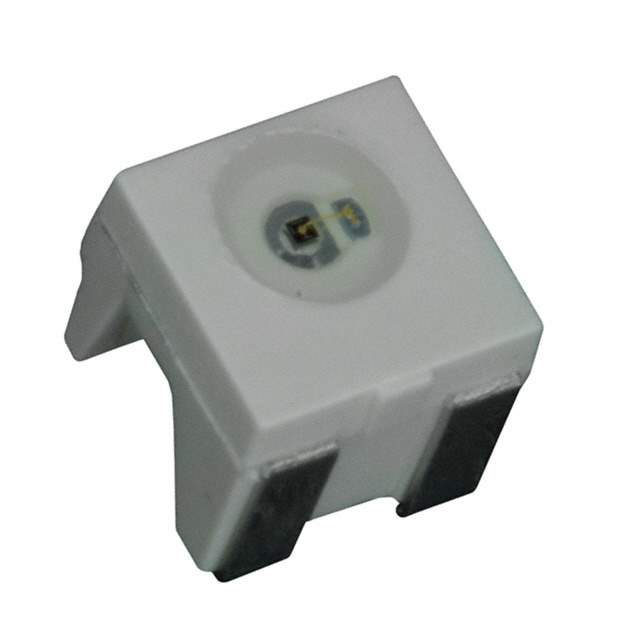

LS A67B-S2U1-1-0-30-R33-Z Real Image
Same model may have multiple batches, images only for reference.

LS A67B-S2U1-1-0-30-R33-Z

Part No LS A67B-S2U1-1-0-30-R33-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog LED Indication - Discrete
Datasheet
LS A67B-S2U1-1-0-30-R33-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr ams-OSRAM USA Inc.
Series SIDELED®
Package Tape & Reel
Product Status Obsolete
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 392mcd
Lens Style Round with Flat Top
Lens Size 2.40mm Dia
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 30mA
Viewing Angle 120°
Mounting Type Surface Mount, Right Angle
Wavelength - Dominant 633nm
Wavelength - Peak 645nm
Package / Case 2-SMD, Boomerang
Supplier Device Package SMD
Dimension 4.00mm L x 3.60mm W
Height (Max) 4.20mm
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1315445-LS A67B-S2U1-1-0-30-R33-Z
Ultra Librarian 3D Model Ultra Librarian LS A67B-S2U1-1-0-30-R33-Z CAD Model

Description

The SIDELED series LED component with Win Source Part Number 1315445-LS A67B-S2U1-1-0-30-R33-Z is a red SMD LED supplied in tape and reel packaging.

  • Color: Red
  • Package: Tape and Reel
  • Viewing Angle: 120 degrees
  • Voltage-Forward: 2.1 V
  • Current Test: 30 mA
  • Wavelength-Dominant: 633 nm
  • Millicandela Rating: 392 mcd
  • Height: 4.20 mm
  • Package/Case: 2-SMD, Boomerang
  • Supplier Device Package: SMD
