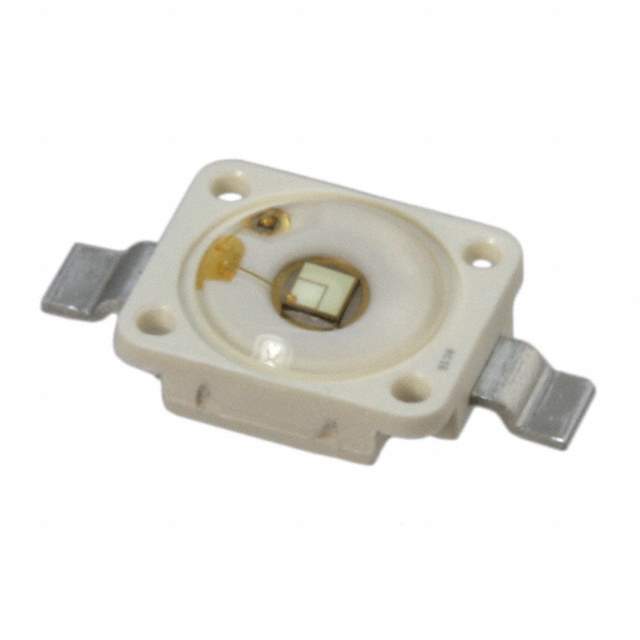

Same model may have multiple batches, images only for reference.

LT W5AM-JYKZ-36-Z

Get a Quote

Part No	LT W5AM-JYKZ-36-Z
Manufacturer	OSRAM Opto Semiconductors Inc.
Catalog	LED Lighting - Color
Datasheet	LT W5AM-JYKZ-36-Z Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Optoelectronics>LED Lighting - Color
Mfr	ams-OSRAM USA Inc.
Series	Golden DRAGON® Plus
Package	Tape & Reel
Product Status	Obsolete
Color	Green
Wavelength	531nm (519nm ~ 543nm)
Current - Test	350mA
Voltage - Forward (Vf) (Typ)	3.3V
Lumens/Watt @ Current - Test	71 lm/W
Current - Max	1A
Luminous Flux @ Current/Temperature	82lm (52lm ~ 112lm)
Temperature - Test	25°C
Viewing Angle	170°
Mounting	SMD (SMT)
Package / Case	2-SMD, Gull Wing Exposed Pad
Supplier Device Package	2-SMD
Dimension	0.276" Dia x 0.236" L (7.00mm x 6.00mm)
Height - Seated (Max)	0.122" (3.10mm)
Thermal Resistance of Package	6.5°C/W
MSL Level	2A (4 Weeks)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.41.0000
Win Source Part Number	1315450-LT W5AM-JYKZ-36-Z
Ultra Librarian 3D Model	Ultra Librarian LT W5AM-JYKZ-36-Z CAD Model

Alternative Products

Description

The Green Golden DRAGON® Plus LED Lighting - Color is a high-performance optoelectronic component.

Mounting Type: SMD (SMT)
Package / Case: 2-SMD, Gull Wing Exposed Pad
Viewing Angle: 170°
Voltage-Forward (Vf) (Typ): 3.3V
Thermal Resistance of Package: 6.5°C/W
Current - Max: 1A
Luminous Flux: 82lm (52lm ~ 112lm) @ 350mA
Wavelength: 531nm (519nm ~ 543nm) @ 350mA
Lumens/Watt: 71 lm/W
Height: 0.122" (3.10mm)
Dimension: 0.276" Dia x 0.236" L (7.00mm x 6.00mm)
Status: Obsolete
