Same model may have multiple batches, images only for reference.

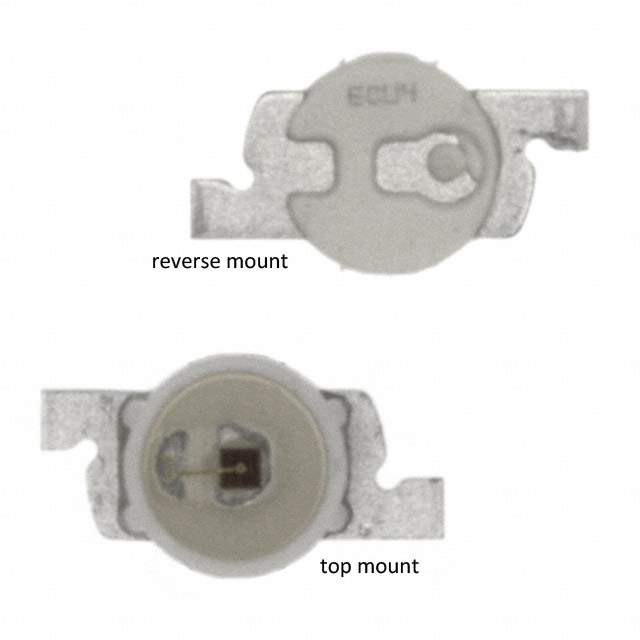

LY P476-R2T1-26-0-20-R18-Z Real Image
Same model may have multiple batches, images only for reference.

LY P476-R2T1-26-0-20-R18-Z

Part No LY P476-R2T1-26-0-20-R18-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog LED Indication - Discrete
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr ams-OSRAM USA Inc.
Series PointLED®
Package Tape & Reel
Product Status Obsolete
Color Yellow
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 247.5mcd
Lens Style Round with Flat Top
Lens Size 1.60mm Dia
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Viewing Angle 120°
Mounting Type Surface Mount, Bottom Entry
Wavelength - Dominant 587nm
Wavelength - Peak 591nm
Package / Case 2-SMD, Flat Lead
Supplier Device Package SMD
Dimension 3.40mm L x 1.90mm W
Height (Max) 0.88mm
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1314350-LY P476-R2T1-26-0-20-R18-Z
Ultra Librarian 3D Model Ultra Librarian LY P476-R2T1-26-0-20-R18-Z CAD Model

Description

The LY P476-R2T1-26-0-20-R18-Z is a yellow surface mount LED indication discrete that is designed to operate with a forward voltage of 2V and a current of 20mA.

  • Color: Yellow
  • Voltage: 2V
  • Current: 20mA
  • Millicandela Rating: 247.5mcd
  • Wavelength Dominant: 587nm
  • Viewing Angle: 120 degrees
  • Package: 2-SMD, Flat Lead
