Same model may have multiple batches, images only for reference.

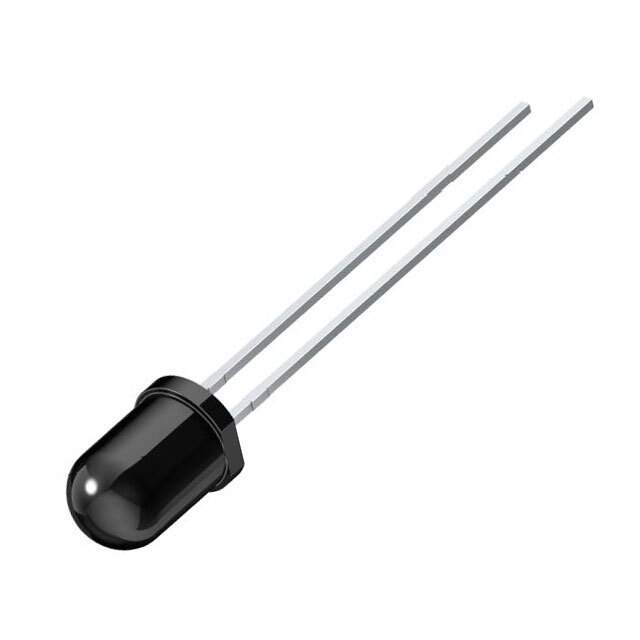

SFH 4556-VAW Real Image
Same model may have multiple batches, images only for reference.

SFH 4556-VAW

Part No SFH 4556-VAW
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Infrared, UV, Visible Emitters
Description RADIAL T1 3/4 / Infrared (IR) Emitter 860nm 1.5V 100mA 63mW/sr @ 100mA 40° Radial
Datasheet
SFH 4556-VAW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Emitters - Infrared, UV, Visible
Mfr ams-OSRAM USA Inc.
Package Bulk
Type Infrared (IR)
Current - DC Forward (If) (Max) 100mA
Radiant Intensity (Ie) Min @ If 63mW/sr @ 100mA
Wavelength 860nm
Voltage - Forward (Vf) (Typ) 1.5V
Viewing Angle 40°
Orientation Top View
Temperature Range - Operating -40°C ~ 100°C (TA)
Mounting Type Through Hole
Package / Case Radial
Base Product Number SFH4556
Other Names Q65110A9803,SFH4556-VAW,SFH4556-VAW,475-3589,SFH 4556-VAW
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242481-SFH 4556-VAW
Ultra Librarian 3D Model Ultra Librarian SFH 4556-VAW CAD Model

Description

The SFH4556-VAW is an Infrared (IR) LED emitter with a viewing angle of 40 degrees.

  • Maximum DC forward current: 100mA
  • Forward voltage: 1.5V
  • Wavelength: 860nm
  • Radiant intensity @ 100mA: 63mW/sr
  • Mounting: through-hole mounted
  • Package/Case: radial
  • Operating temperature range: -40°C to 100°C
  • Manufacturer: ams-OSRAM USA Inc.
  • Also Known As: Q65110A9803, SFH4556-VAW, 475-3589, and SFH 4556-VAW
