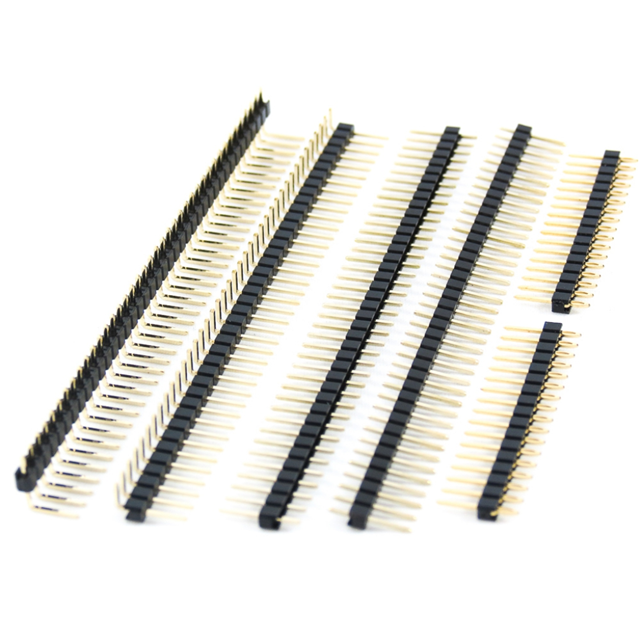

Same model may have multiple batches, images only for reference.

2011-1X10G00SB

Name: 2011-1X10G00SB
Brand: Oupiin
SKU: 1340369
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	2011-1X10G00SB
Manufacturer	Oupiin
Catalog	Rectangular Connectors
Description	PIN HEADER, SINGLE ROW, 10 PIN, / Connector Header Through Hole 10 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Oupiin
Series	2011
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	10
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	0.118" (3.00mm)
Overall Contact Length	0.457" (11.60mm)
Insulation Height	0.098" (2.50mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish - Post	Gold
Contact Material	Brass
Insulation Material	Polybutylene Terephthalate (PBT)
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Contact Finish Thickness - Post	Flash
Base Product Number	2011
Standard Package	1
MSL Level	2 (1 Year)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1340369-2011-1X10G00SB
Ultra Librarian 3D Model	Ultra Librarian 2011-1X10G00SB CAD Model

Alternative Products

Description

The Oupiin 2011 series is a 10 position header, male pins connector with a pitch of 0.100" (2.54mm).

Operating Temperature: -40°C to 105°C
Package: Bulk
Mounting Type: Through Hole
Family Name: 2011
Category: Rectangular Connectors
Current Rating (Amps): 3A
HTSUS: 8536.69.4040
