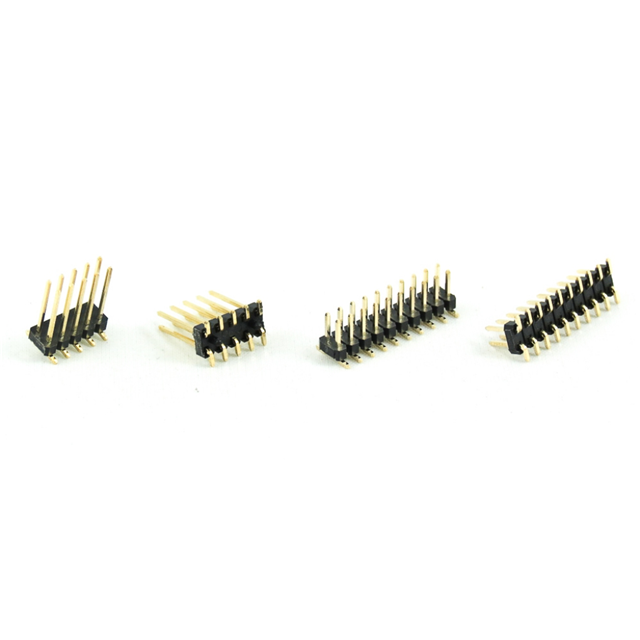

2115-2X20G00DN/4U

Get a Quote

Part No	2115-2X20G00DN/4U
Manufacturer	Oupiin
Catalog	Rectangular Connectors
Description	PIN HEADER, DOUBLE ROW, 40 PINS, / Connector Header Surface Mount 40 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Oupiin
Series	2115
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	40
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.157" (4.00mm)
Insulation Height	0.059" (1.50mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish - Post	Gold
Contact Material	Brass
Insulation Material	Polyamide (PA6T), Nylon 6T
Features	Board Guide
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2A
Contact Finish Thickness - Post	Flash
Base Product Number	2115
MSL Level	2 (1 Year)
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	2553-2115-2X20G00DN/4U
Standard Package	1,000
Win Source Part Number	1153548-2115-2X20G00DN/4U
Ultra Librarian 3D Model	Ultra Librarian 2115-2X20G00DN/4U CAD Model

Alternative Products

Description

The 1153548-2115-2X20G00DN/4U is a board-to-board connector manufactured by Oupiin.

Description: It is a highly reliable and efficient device that is designed to connect two circuit boards. The connector has 40 positions and is loaded with all contacts. It has a pitch-mating of 0.079 inches and a row spacing-mating of 0.079 inches. The device has a current rating of 2A and a temperature range of -40 to 105 degrees Celsius. The MSL level is 2, and the standard package contains 1,000 connectors.
