Same model may have multiple batches, images only for reference.

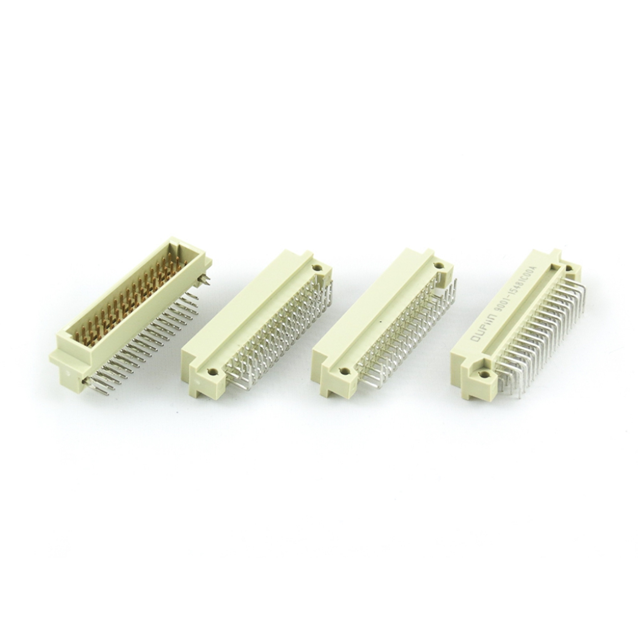

9001-15481C00A Real Image
Same model may have multiple batches, images only for reference.

9001-15481C00A

Part No 9001-15481C00A
Manufacturer Oupiin
Catalog Backplane Connectors
Description DIN41612, MALE, HALF C TYPE, 48 / 48 Position Din Connector Header, Male Pins Gold Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors - DIN 41612
Mfr Oupiin
Series 9001
Package Tray
Connector Type Header, Male Pins
Number of Positions 48
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 3
Style C/2 (1/2 C)
Mounting Type Through Hole, Right Angle
Termination Solder
Contact Finish Gold
Contact Finish Thickness Flash
Temperature Range - Operating -55°C ~ 125°C
Current Rating (Amps) 2A
Material Flammability Rating UL94 V-0
Material - Insulation Polybutylene Terephthalate (PBT)
Base Product Number 9001
MSL Level 2 (1 Year)
HTSUS 8536.69.4040
Other Names 2553-9001-15481C00A
Standard Package 216
Win Source Part Number 1135476-9001-15481C00A
Ultra Librarian 3D Model Ultra Librarian 9001-15481C00A CAD Model

Description

The Oupiin 9001-15481C00A is a header male pin connector with 48 positions and a pitch of 0.100" (2.54mm).

  • Series: 9001
  • Temperature Range: -55°C to 125°C
  • Loaded Positions: All
  • Rows: Three
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Insulation Material: Polybutylene Terephthalate (PBT)
  • Flammability Rating: UL94 V-0
  • Suitable For: Backplane Connectors - DIN 41612
