Same model may have multiple batches, images only for reference.

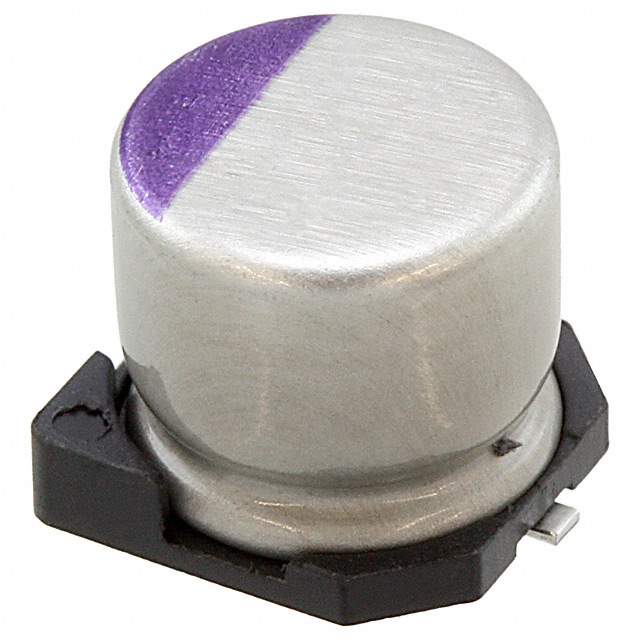

10SVPC120M Real Image
Same model may have multiple batches, images only for reference.

10SVPC120M

Part No 10SVPC120M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 120UF 20% 10V SMD / 120 µF 10 V Aluminum - Polymer Capacitors Radial, Can - SMD 27mOhm 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Type Polymer
Capacitance 120 µF
Tolerance ±20%
Voltage - Rated 10 V
ESR (Equivalent Series Resistance) 27mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ Low Frequency 116 mA @ 120 Hz
Ripple Current @ High Frequency 2.32 A @ 100 kHz
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.236" (6.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
Base Product Number 10SVPC
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number P16440TR,P16440CT,P16440DKR
Standard Package 1,000
Win Source Part Number 1331123-10SVPC120M
Ultra Librarian 3D Model Ultra Librarian 10SVPC120M CAD Model

Description

The Panasonic Electronic Components 1331123-10SVPC120M is a surface mount polymer capacitor.

  • Capacitance: 120 µF
  • Voltage Rating: 10 V
  • ESR: 27mOhm
  • Ripple Current (Low Frequency): 116 mA @ 120 Hz
  • Ripple Current (High Frequency): 2.32 A @ High Frequency
  • Lifetime: 2000 hours @ 105°C
  • Size: 0.248" Dia (6.30mm)
  • Height Seated (Max): 0.236" (6.00mm)
  • Packaging: Reel - TR
  • Standard Package: 1,000
  • Case/Package: Radial, Can - SMD
  • ROHS3 Compliant: Yes
  • Temperature Range: -55°C ~ 105°C
  • Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
