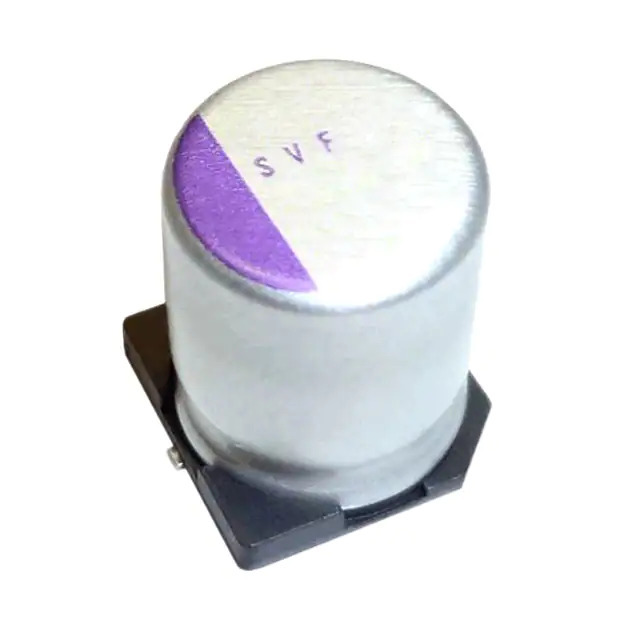

16SVF180M Panasonic
Same model may have multiple batches, images only for reference.

16SVF180M

Part No 16SVF180M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 180UF 20% 16V SMD / 180 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 22mOhm 1000 Hrs @ 125°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series OS-CON™, SVF
Package Tape & Reel
Product Status Active
Type Polymer
Capacitance 180 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) 22mOhm
Lifetime @ Temp. 1000 Hrs @ 125°C
Temperature Range - Operating -55°C ~ 125°C
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 52 mA @ 120 Hz
Ripple Current @ High Frequency 1.04 A @ 100 kHz
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.236" (6.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number 16SVF
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1359593-16SVF180M
Ultra Librarian 3D Model Ultra Librarian 16SVF180M CAD Model

Description

The 1359593-16SVF180M is a polymer capacitor from Panasonic Electronic Components. It is part of the OS-CON™ SVF series and has a capacitance of 180 µF with a voltage rating of 16 V.

  • Series: OS-CON™ SVF
  • Capacitance: 180 µF
  • Voltage Rating: 16 V
  • Tolerance: ±20%
  • ESR: 22mOhm
  • Application: General Purpose
  • Ripple Current (120 Hz): 52 mA
  • Ripple Current (100 kHz): 1.04 A
  • Package: Radial, Can - SMD
  • Mounting Type: Surface Mount
  • Size: 0.248" diameter (6.30mm)
  • Height: 0.236" (6.00mm)
  • Lifetime: 1000 hours @ 125°C
