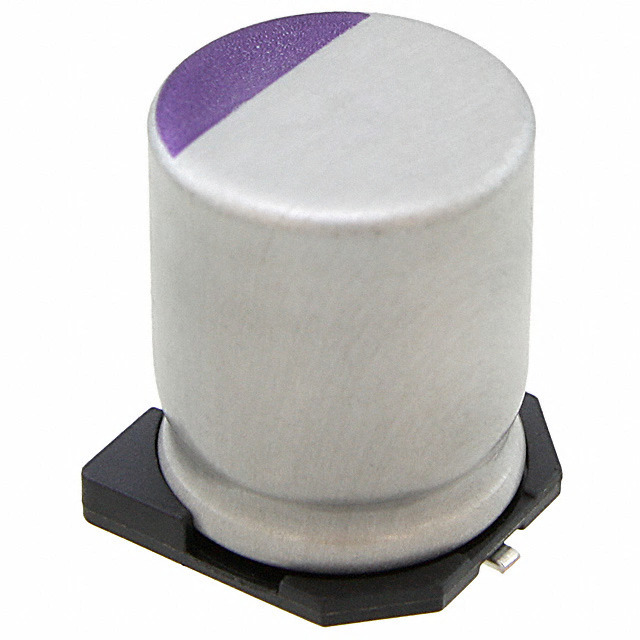

16SVPF1000M Panasonic
Same model may have multiple batches, images only for reference.

16SVPF1000M

Part No 16SVPF1000M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description Surface Mount Type | CAP ALUM POLY 1000UF 20% 16V SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel
Type Polymer
Capacitance 1000μF
Tolerance ±20%
Voltage - Rated 16V
ESR (Equivalent Series Resistance) 12mOhm
Lifetime at Temp. 5000 Hrs at 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current at Low Frequency 270mA at 120Hz
Ripple Current at High Frequency 5.4A at 100kHz
Parts Dimension 0.394" Dia (10.00mm)
Height - Seated (Maximum) 0.500" (12.70mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Style SMD
Manufacturer Package Radial, Can - SMD
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1121453-16SVPF1000M
Manufacturer Homepage www.panasonic.com/industrial/
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Industrial, Medical, Automotive, Communications & Networking, Computers & Computer Peripherals, Motor Drive & Control, Automation & Process Control, Security
Ultra Librarian 3D Model Ultra Librarian 16SVPF1000M CAD Model

Description

The Panasonic Electronic Components 1121453-16SVPF1000M is a polymer capacitor with a capacitance of 1000μF and a voltage rating of 16V.

  • Capacitance: 1000μF
  • Voltage Rating: 16V
  • Application: General-Purpose
  • Tolerance: ±20%
  • Mounting: Surface-Mount
  • ESR: 12mOhm
  • Applications: Industrial, medical, automotive, communications and networking, computers and computer peripherals, motor drive and control, automation and process control, and security.
