Same model may have multiple batches, images only for reference.

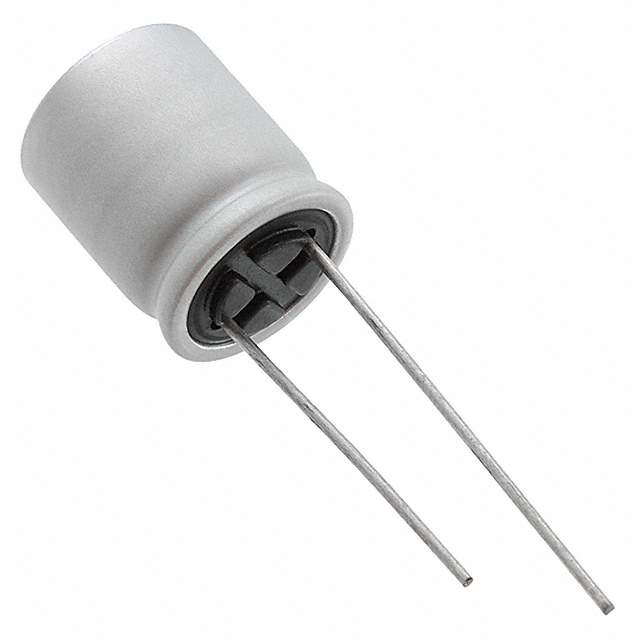

20SEP150M Real Image
Same model may have multiple batches, images only for reference.

20SEP150M

Part No 20SEP150M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 150UF 20% 20V T/H / 150 µF 20 V Aluminum - Polymer Capacitors Radial, Can 20mOhm 3000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Manufacturer Panasonic Electronic Components
Packaging Bulk
Type Polymer
Capacitance 150 µF
Tolerance ±20%
Voltage - Rated 20 V
ESR (Equivalent Series Resistance) 20mOhm
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ Low Frequency 216 mA @ 120 Hz
Ripple Current @ High Frequency 4.32 A @ 100 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Mounting Through Hole
Case / Package Radial, Can
Base Product Number 20SEP
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number P16307
Standard Package 200
Win Source Part Number 1331447-20SEP150M
Ultra Librarian 3D Model Ultra Librarian 20SEP150M CAD Model

Description

The Panasonic Electronic Components 20SEP150M capacitor is an aluminum-polymer capacitor with a capacitance of 150 µF and a voltage rating of 20 V.

  • Capacitance: 150 µF
  • Voltage Rating: 20 V
  • Tolerance: ±20%
  • ESR (Equivalent Series Resistance): 20mOhm
  • Packaging: Bulk
  • Mounting Type: Through-Hole Mounted
  • Lifetime: 3000 Hrs @ 105°C
  • ROHS3 Compliant: Yes
