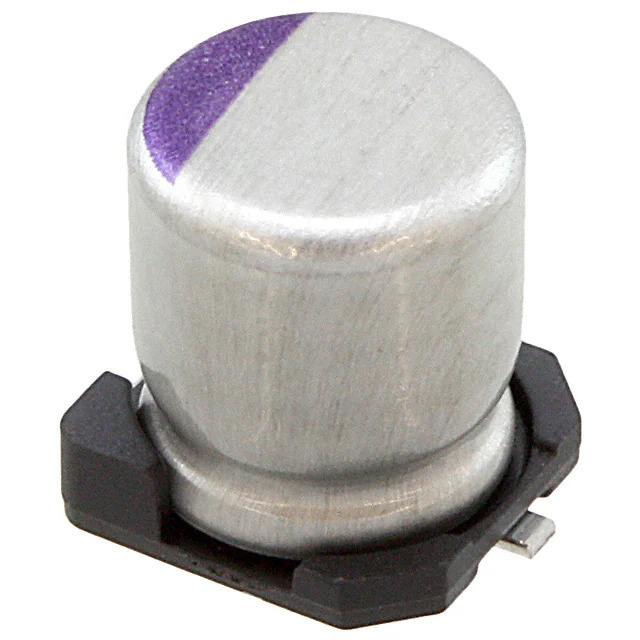

20SVPS22M Panasonic
Same model may have multiple batches, images only for reference.

20SVPS22M

Part No 20SVPS22M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 22UF 20% 20V SMD / 22 µF 20 V Aluminum - Polymer Capacitors Radial, Can - SMD 60mOhm 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series OS-CON™, SVPS
Package Tape & Reel
Product Status Active
Type Polymer
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 20 V
ESR (Equivalent Series Resistance) 60mOhm
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 72.5 mA @ 120 Hz
Ripple Current @ High Frequency 1.45 A @ 100 kHz
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.236" (6.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number 20SVPS
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1359506-20SVPS22M
Ultra Librarian 3D Model Ultra Librarian 20SVPS22M CAD Model

Description

The 20SVPS22M is a polymer capacitor from Panasonic Electronic Components.

  • Series: OS-CON™, SVPS
  • Packaging: Tape & Reel
  • Package Type: Radial, Can - SMD
  • Mounting Type: Surface Mount
  • Base Product Number: 20SVPS
  • Capacitance: 22 µF
  • Rated Voltage: 20V
  • Tolerance: ±20%
  • ESR: 60mOhm
  • Lifetime: 5000 Hours @ 105°C
  • Application: General Purpose
  • Size: 0.248 inches (6.30mm) Diameter
  • Height: 0.236 inches (6.00mm)
