Same model may have multiple batches, images only for reference.

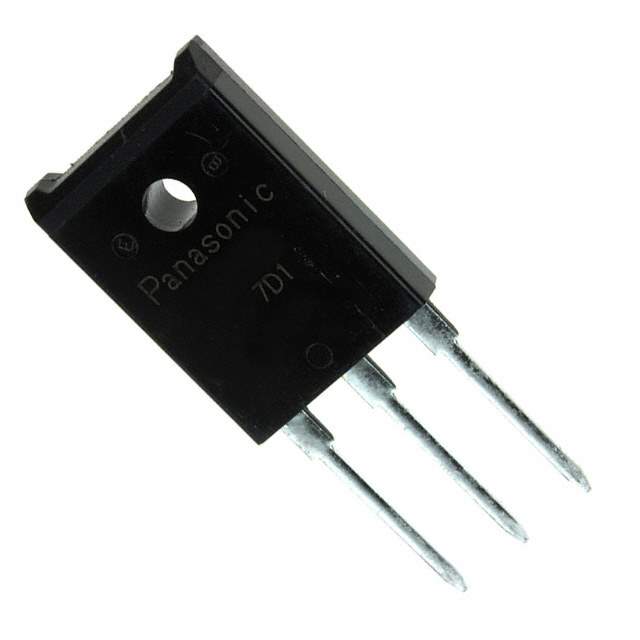

2SC3506 Real Image
Same model may have multiple batches, images only for reference.

2SC3506

Part No 2SC3506
Manufacturer Panasonic
Catalog Transistors (BJT) - Single
Description Silicon NPN triple diffusion planar type(For high-speed switching) | TRANS NPN 800V 3A TOP-3F
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Bulk
Status Obsolete
Transistor Type NPN
Current - Collector (Ic) (Maximum) 3A
Voltage - Collector Emitter Breakdown (Maximum) 800V
Vce Saturation (Maximum) at Ib, Ic 1.5V at 400mA, 2A
Current - Collector Cutoff (Maximum) 50μA (ICBO)
DC Current Gain (hFE) (Minimum) at Ic, Vce 6 at 2A, 5V
Maximum Power 3W
Frequency - Transition 4MHz
Temperature Range - Operating 150°C
Mounting Style Through Hole
Manufacturer Package TOP-3F
Supplier Device Package TOP-3F-A1
Manufacturer Pack Quantity 40
MSL Level 1 (Unlimited)
Win Source Part Number 1125437-2SC3506
Manufacturer Homepage www.panasonic.com/industrial/
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 2SC3506 CAD Model

Description

The Panasonic Electronic Components 2SC3506 is a through-hole mounted NPN transistor with a maximum collector-emitter breakdown voltage of 800V and a maximum current collector of 3A.

  • Mounting Type: Through-hole
  • Transistor Type: NPN
  • Maximum Collector-Emitter Breakdown Voltage: 800V
  • Maximum Current Collector: 3A
  • Frequency Transition: 4MHz
  • Temperature Range: -150°C
  • Status: Obsolete
  • Supply and Demand Status: Limited
  • Package: TOP-3F-A1
  • Manufacturer Pack Quantity: 40
  • DC Current Gain (hFE): 6 @ 2A and 5V
  • Vce Saturation: 1.5V @ 400mA and 2A
  • Popularity: Medium popularity with a 68% threat of fake products in the open market.
