Same model may have multiple batches, images only for reference.

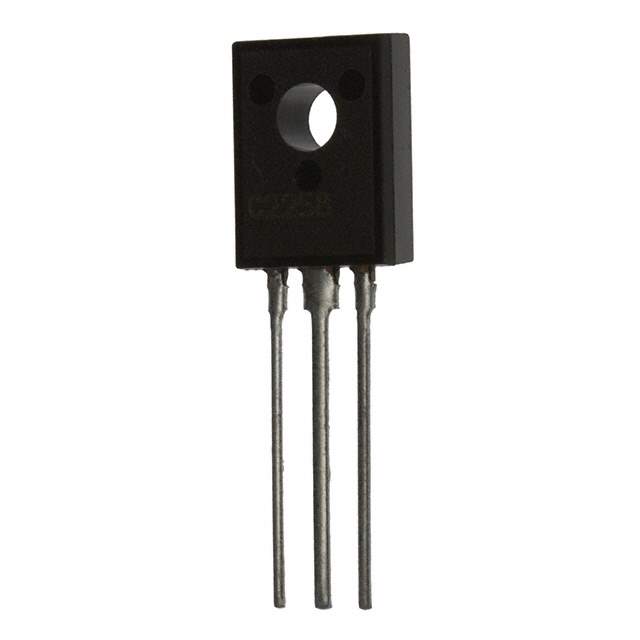

2SC3611 Real Image
Same model may have multiple batches, images only for reference.

2SC3611

Part No 2SC3611
Manufacturer Panasonic
Catalog RF Transistors (BJT)
Description TRANS NPN 50V 0.15A TO126B-A1  /  Bipolar (BJT) Transistor NPN 50 V 150 mA 300MHz 4 W Through Hole TO-126B-A1
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - Bipolar (BJT) - Single
Mfr Panasonic Electronic Components
Package Bulk
Product Status Obsolete
Transistor Type NPN
Current - Collector (Ic) (Max) 150 mA
Voltage - Collector Emitter Breakdown (Max) 50 V
Vce Saturation (Max) @ Ib, Ic 500mV @ 15mA, 150mA
Current - Collector Cutoff (Max) 10µA
DC Current Gain (hFE) (Min) @ Ic, Vce 20 @ 100mA, 5V
Power - Max 4 W
Frequency - Transition 300MHz
Temperature Range - Operating 150°C (TJ)
Mounting Type Through Hole
Package / Case TO-225AA, TO-126-3
Supplier Device Package TO-126B-A1
Base Product Number 2SC361
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0075
Other Names 2SC3611-NDR,Q4494427
Standard Package 1,000
Win Source Part Number 976898-2SC3611
Ultra Librarian 3D Model Ultra Librarian 2SC3611 CAD Model

Description

The Panasonic Electronic Components 2SC3611 is an NPN bipolar transistor with a maximum power of 4W and a maximum voltage of 50V.

  • Manufacturer: Panasonic Electronic Components
  • Type: NPN bipolar transistor
  • Maximum Power: 4W
  • Maximum Voltage: 50V
  • Maximum Current: 150mA
  • DC Current Gain (hFE): 20 @ 100mA, 5V
  • Applications: Discrete semiconductor products
  • Package: TO-225AA, TO-126-3
  • Market Status: Obsolete
  • Supply and Demand Status: Not applicable
  • Package Quantity: 1000 pcs
