Same model may have multiple batches, images only for reference.

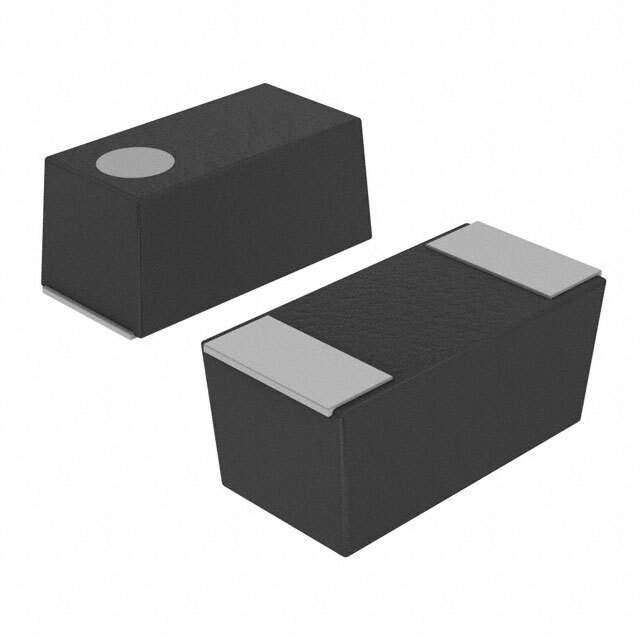

6TPH47MHA Real Image
Same model may have multiple batches, images only for reference.

6TPH47MHA

Part No 6TPH47MHA
Manufacturer Panasonic
Catalog Tantalum - Polymer Capacitors
Description CAP TANT POLY 47UF 6.3V 1206
Datasheet
6TPH47MHA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Series POSCAP TPH
Packaging Reel package
Capacitance 47μF
Tolerance ±20%
Voltage Rating DC 6.3V
Type Molded
ESR (Equivalent Series Resistance) 150 mOhm
Operating Temperature Range -55°C ~ 105°C
Lifetime @ Temp. 1000 Hrs @ 105°C
Mounting SMD
Package 1206 (3216 Metric)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Maximum) 0.039" (1.00mm)
Manufacturer Size Code A09
Features General
Win Source Part Number 764620-6TPH47MHA
Popularity Medium
Supply and Demand Status Limited
Family Name TPH
Introduction Date June 12, 2013
ECCN EAR99
Country of Origin Indonesia
Halogen Free Compliant
Estimated EOL Date 2021
Ultra Librarian 3D Model Ultra Librarian 6TPH47MHA CAD Model

Description

The Panasonic Electronic Components POSCAP TPH series capacitor is a molded type capacitor that comes in a 1206 (3216 Metric) package.

  • Capacitance: 47μF
  • Tolerance: ±20%
  • ESR: 150 mOhm
  • Lifetime: 1000 Hrs @ 105°C
  • Voltage Rating DC: 6.3V
  • Operating Temperature Range: -55°C to 105°C
  • Halogen-Free: Yes
  • Dimension: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Height: 0.039" (1.00mm) max.
  • Manufacturer Size Code: A09
