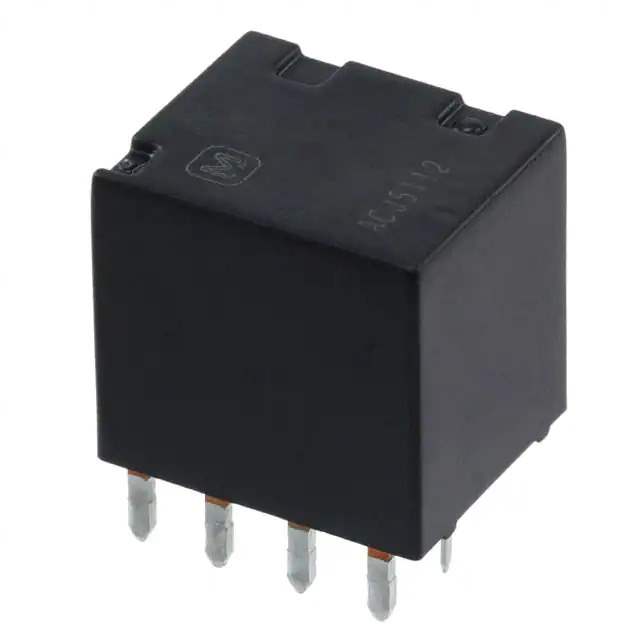

ACJ5112 Real Image
Same model may have multiple batches, images only for reference.

ACJ5112

Part No ACJ5112
Manufacturer Panasonic
Catalog Automotive Relays
Description RELAY AUTOMOTIVE SPDTX2 20A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Automotive Relays
Mfr Panasonic
Series ACJ
Package Tube
Product Status Last Time Buy
Coil Type Non Latching
Coil Current 66.7 mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C) x 2
Contact Rating (Current) 20 A
Switching Voltage 14VDC - Nom
Must Operate Voltage 6.5 VDC
Must Release Voltage 0.8 VDC
Operate Time 10 ms
Release Time 10 ms
Features Sealed - Fully
Mounting Type Through Hole
Termination Style PC Pin
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Alloy, Cadmium Free
Coil Power 800mW
Coil Resistance 180 Ohms
Base Product Number ACJ511
Standard Package 35 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 859256-ACJ5112
Ultra Librarian 3D Model Ultra Librarian ACJ5112 CAD Model

Description

The ACJ5112 is a SPDT (1 Form C) x 2 automotive relay from Panasonic's ACJ series.

  • Termination Style: PC Pin
  • Seal: Fully Sealed
  • Package: Tube
  • Contact Material: Silver Alloy, Cadmium-Free
  • Coil Resistance: 180 Ohms
  • Coil Voltage: 12VDC
  • Coil Current: 66.7 mA
  • Contact Rating: 20 A (Current)
  • Switching Voltage: 14VDC
  • Operate Time: 10 ms
  • Release Time: 10 ms
  • Mounting Type: Through-Hole
  • Operating Temperature: -40°C to 85°C
