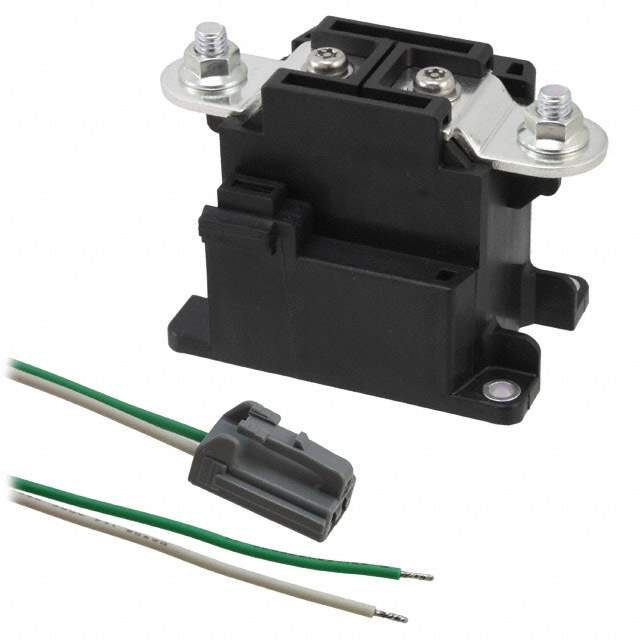

AEP19024 Real Image
Same model may have multiple batches, images only for reference.

AEP19024

Part No AEP19024
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY AUTO SPST 300A 24V / Relay SPST-NO (1 Form A) 24VDC Coil Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series AEP
Package Bulk
Mounting Type Chassis Mount
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 300 A
Switching Voltage 277VAC, 400VDC - Nom
Coil Current 1.9 A
Coil Type Non Latching
Termination Style Stud
Seal Rating Sealed - Hermetically
Must Operate Voltage 18 VDC
Must Release Voltage 1.92 VDC
Operate Time 30 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 80°C
Base Product Number AEP190
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Other Names 255-3107
Standard Package 1
Win Source Part Number 1043650-AEP19024
Ultra Librarian 3D Model Ultra Librarian AEP19024 CAD Model

Description

The Panasonic Electric Works AEP19024 is a power relay with a contact form of SPST-NO (1 Form A) and a contact rating of 300 A.

  • Series: AEP Series
  • Coil Voltage: 24VDC
  • Coil Current: 1.9 A
  • Operate Time: 30 ms
  • Release Time: 10 ms
  • Hermetically Sealed: Yes
  • Mounting: Chassis Mount
  • Temperature Range: -40°C ~ 80°C
  • Approval: ECCN
  • Market Status: Open Market
  • Alternative Parts: 3-1616058-6, AEV19024W, AEP19012, and AEV19012W
