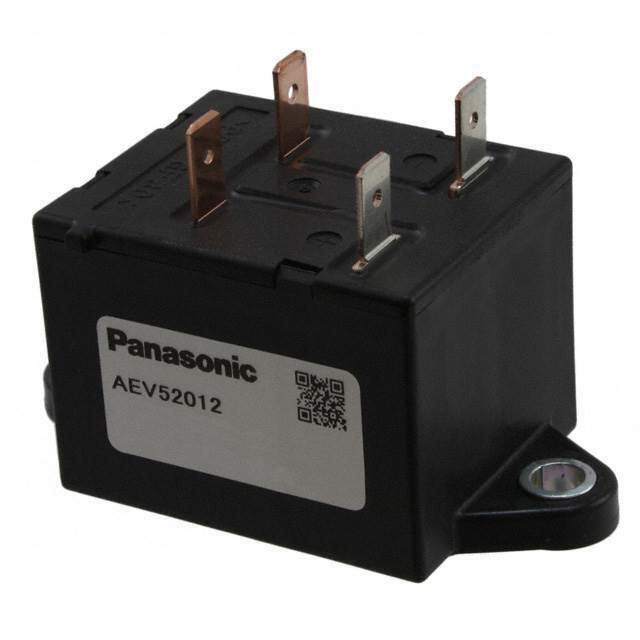

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Panasonic Electric Works
Packaging Bulk
Coil Type Non Latching
Coil Current 327mA
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 20A
Switching Voltage 400VDC - Nom
Must Operate Voltage 9 VDC
Must Release Voltage 0.5 VDC
Operate Time 50ms
Release Time 30ms
Mounting Style Chassis Mount
Termination Style Plug In, Quick Connect - 0.250" (6.3mm)
Temperature Range - Operating -40°C ~ 80°C
Coil Power 3.9W
Manufacturer Pack Quantity 25
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 813607-AEV52012
Ultra Librarian 3D Model Ultra Librarian AEV52012 CAD Model

Description

It is a manufacturer part with the Win Source Part Number 813607-AEV52012. The product is a chassis mount with a plug-in, quick connect termination style of 0.250" (6.3mm).

  • Contact Form: Single-pole single-throw normally open
  • Contact Rating: 20A
  • Coil Voltage: 12VDC
  • Coil Current: 327mA
  • Coil Power: 3.9W
  • Temperature Range: -40°C ~ 80°C
  • Must Operate Voltage: 9VDC
  • Must Release Voltage: 0.5VDC
