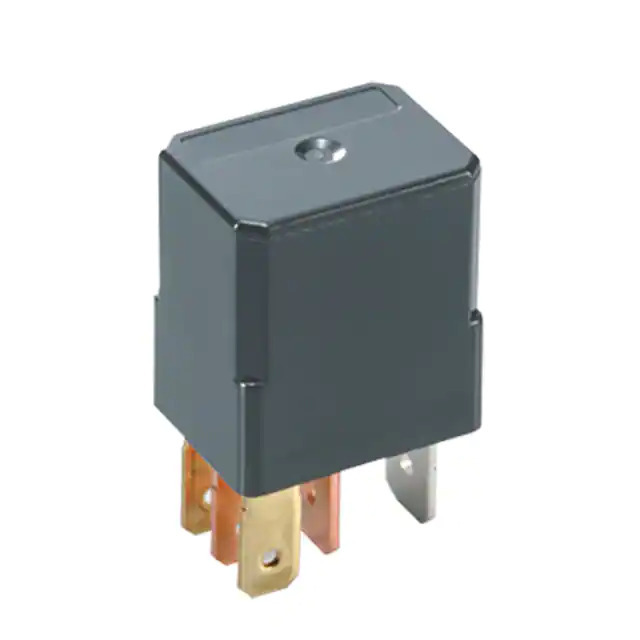

CM1-R-12V Panasonic
Same model may have multiple batches, images only for reference.

CM1-R-12V

Part No CM1-R-12V
Manufacturer Panasonic
Catalog Automotive Relays
Description RELAY AUTOMOTIVE SPDT 35A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Automotive Relays
Mfr Panasonic Electric Works
Series CM
Package Bulk
Product Status Active
Coil Type Non Latching
Coil Current 125 mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 35 A
Switching Voltage 14VDC - Nom
Must Operate Voltage 7 VDC
Must Release Voltage 1.2 VDC
Operate Time 10 ms
Release Time 10 ms
Features Resistor, Sealed - Fully
Mounting Type Socketable
Termination Style Plug In
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Alloy, Cadmium Free
Coil Power 1.7W
Coil Resistance 96 Ohms
Base Product Number CM1-R
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1373510-CM1-R-12V
Ultra Librarian 3D Model Ultra Librarian CM1-R-12V CAD Model

Description

The CM1-R-12V is an automotive relay manufactured by Panasonic Electric Works.

  • Series: CM
  • Packaging: Bulk
  • Contact Form: SPDT (1 Form C)
  • Contact Rating: 35A
  • Coil Voltage: 12VDC
  • Switching Voltage: 14VDC
  • Coil Current: 125mA
  • Coil Type: Non-Latching
  • Must Operate Voltage: 7VDC
  • Must Release Voltage: 1.2VDC
  • Operate Time: 10ms
  • Release Time: 10ms
  • Application: Automotive
