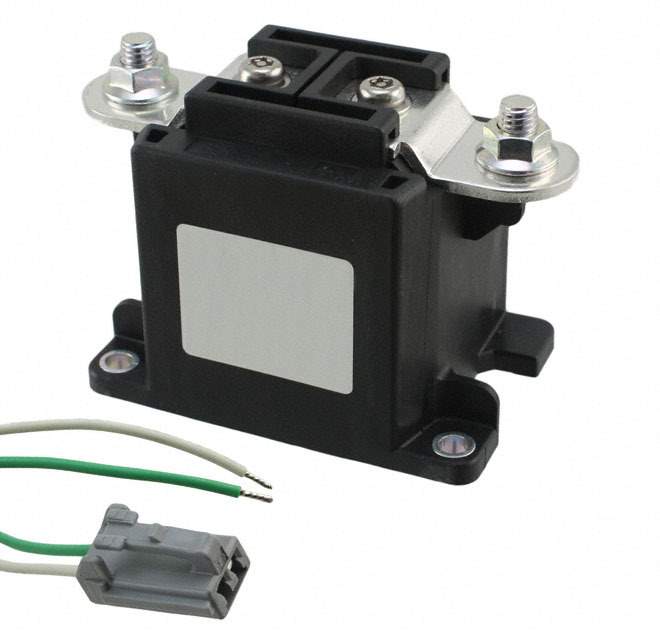

AEV19024W Real Image
Same model may have multiple batches, images only for reference.

AEV19024W

Part No AEV19024W
Manufacturer Panasonic
Catalog Automotive Relays
Description RELAY AUTOMOTIVE SPST 300A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Panasonic Electric Works
Packaging Tray
Coil Type Non Latching
Coil Current 1.9A
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 300A
Switching Voltage 400VDC - Nom
Must Operate Voltage 18 VDC
Must Release Voltage 4 VDC
Operate Time 30ms
Release Time 10ms
Mounting Style Chassis Mount
Termination Style Stud
Temperature Range - Operating -40°C ~ 85°C
Coil Power 3.8W
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 814359-AEV19024W
Ultra Librarian 3D Model Ultra Librarian AEV19024W CAD Model

Description

{"ProductId":752642,"FormattedDescription":"

The AEV19024W from Panasonic Electric Works is a high-quality stud-type relay that is designed for use in a range of applications.

  • Contact Rating: 300A
  • Switching Voltage: 400VDC
  • Coil Voltage: 24VDC
  • Coil Type: Non-Latching
  • Temperature Range: -40°C to 85°C
  • Popularity: Low
  • Supply and Demand Status: Limited
"}
