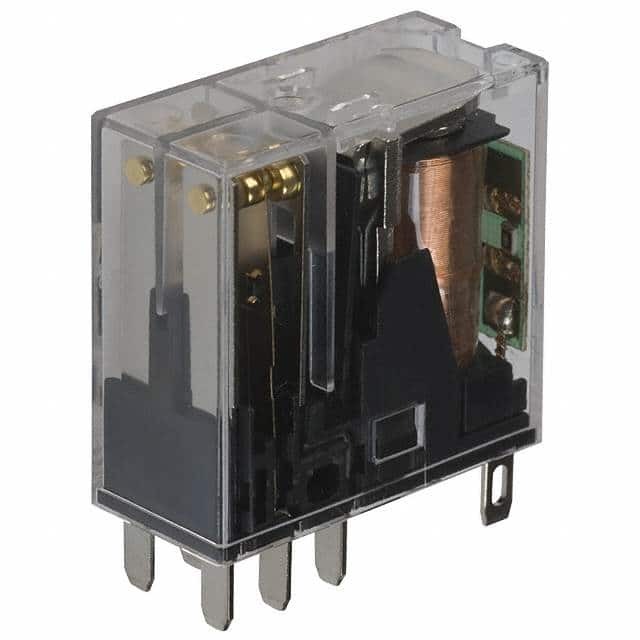

AHN211Y2
Same model may have multiple batches, images only for reference.

AHN211Y2

Part No AHN211Y2
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 5A 240V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series AHN
Package Tube
Product Status Obsolete
Mounting Type Socketable
Coil Voltage 240VAC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 5 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 4.1 mA
Coil Type Non Latching
Features Lighted Indicator
Termination Style Plug In
Must Operate Voltage 192 VAC
Must Release Voltage 72 VAC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Base Product Number AHN211
Standard Package 50 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.49.0050
Win Source Part Number 911280-AHN211Y2
Ultra Librarian 3D Model Ultra Librarian AHN211Y2 CAD Model

Description

The 911280-AHN211Y2 is a power relay from Panasonic's AHN series.

  • Contact Rating: 5A
  • Termination Style: Plug-in
  • Features: Lighted indicator
  • Contact Form: DPDT (2 Form C)
  • Contact Material: Silver nickel (AgNi)
  • Coil Voltage: 240VAC
  • Coil Current: 4.1 mA
  • Operate Time: 15 ms
  • Release Time: 5 ms
  • Socketable: Yes
  • Operating Temperature: -40°C to 70°C
