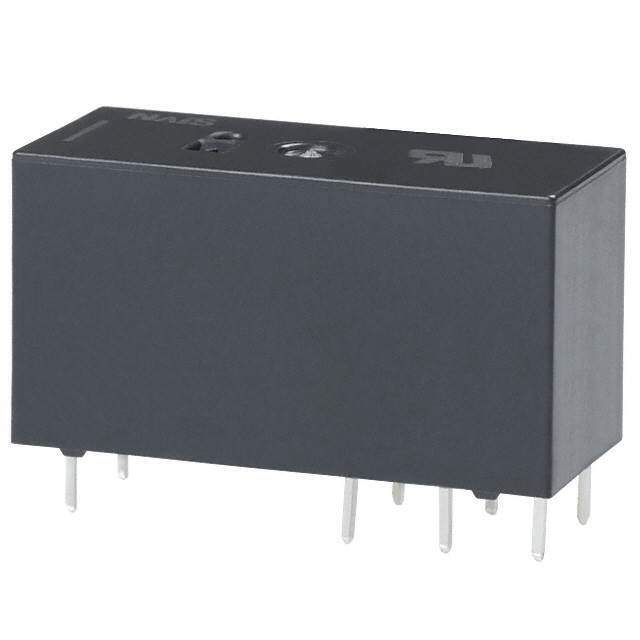

ALZ11F24 Real Image
Same model may have multiple batches, images only for reference.

ALZ11F24

Part No ALZ11F24
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 16A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 16.7mA
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 16A
Switching Voltage 440VAC - Max
Turn On Voltage (Max) 16.8 VDC
Turn Off Voltage (Min) 2.4 VDC
Operate Time 15ms
Release Time 5ms
Features Insulation - Class F, Sealed - Flux Protection
Mounting Through Hole
Termination Style PC Pin
Coil Power 400 mW
Coil Resistance 1.44 kOhms
Temperature Range - Operating -40°C to 105°C
Win Source Part Number 009652-ALZ11F24
Popularity Medium
Supply and Demand Status Limited
Quantity per package 20
Ultra Librarian 3D Model Ultra Librarian ALZ11F24 CAD Model

Description

Product Overview

The ALZ11F24 focuses on delivering high-frequency operations, suitable for advanced electronic projects requiring precision and speed.

Features and Benefits

  • High-Frequency Support: Ideal for applications requiring fast data processing.
  • Precision Engineering: Ensures accurate and reliable performance.
  • Compact Footprint: Facilitates integration into space-constrained designs.

Applications

  • Telecommunication Devices
  • Data Processing Units
  • High-Speed Computing Projects
