Product Overview: TXB0304RUTR by Texas Instruments

The TXB0304RUTR is a robust, versatile level-shifting device from the reputable electronics manufacturer, Texas Instruments (TI). This 4-bit bidirectional voltage-level translator operates seamlessly with mixed-voltage systems, making it an ideal choice for applications requiring voltage level translation between different logic levels ranging from 1.2V to 3.6V on the A side (VCCA) and 1.65V to 5.5V on the B side (VCCB).

Designed for use in multi-voltage digital system environments, the TXB0304RUTR provides a bidirectional translation without the need for a direction control signal, simplifying the interface between incompatible I/O standards. This feature is particularly useful for interfacing devices or systems operating at different voltage levels within the same circuit, such as connecting a 3.3V microcontroller to 5V-peripheral devices.

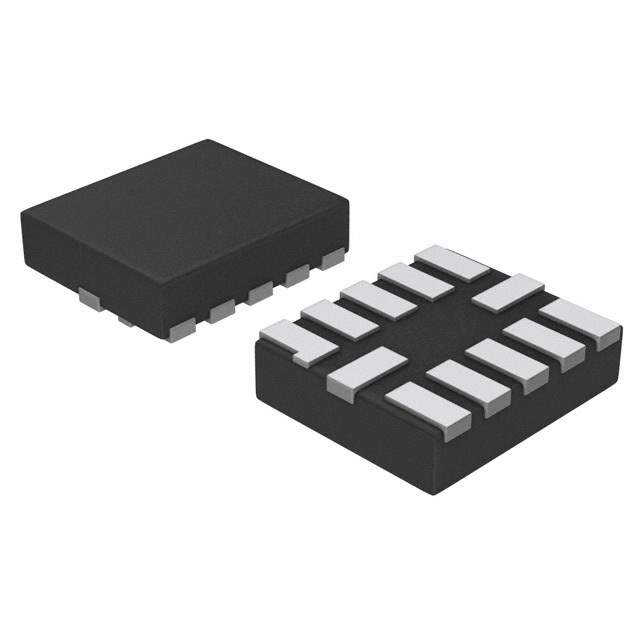

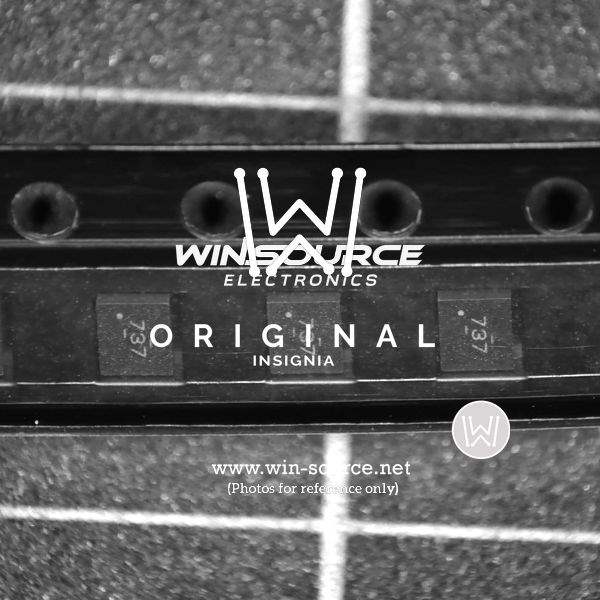

The device comes in a small 14-pin UQFN package, making it suitable for space-constrained applications. It also supports up to 100Mbps data rates, providing the high-speed performance required for modern digital interfaces. The TXB0304RUTR is equipped with an auto-direction sensing feature that adjusts the direction of the data flow without additional input from the user, further simplifying design and reducing the risk of errors.

One of the key features of the TXB0304RUTR is its robustness. It includes a built-in 4kV ESD protection, which helps to safeguard the device against electrostatic discharges, enhancing the longevity and reliability of both the translator and the overall system. Additionally, the device is designed to be tolerant to over-voltage conditions on the I/O ports, which can occur during normal operation and handling.

For designers and engineers looking to integrate mixed-voltage systems or upgrade their current systems with a reliable level translator, the Texas Instruments TXB0304RUTR presents an excellent solution. Its combination of high-speed performance, auto-direction sensing, and ESD protection makes it a strong candidate for a wide array of applications, including but not limited to consumer electronics, mobile devices, and industrial control interfaces.
