Same model may have multiple batches, images only for reference.

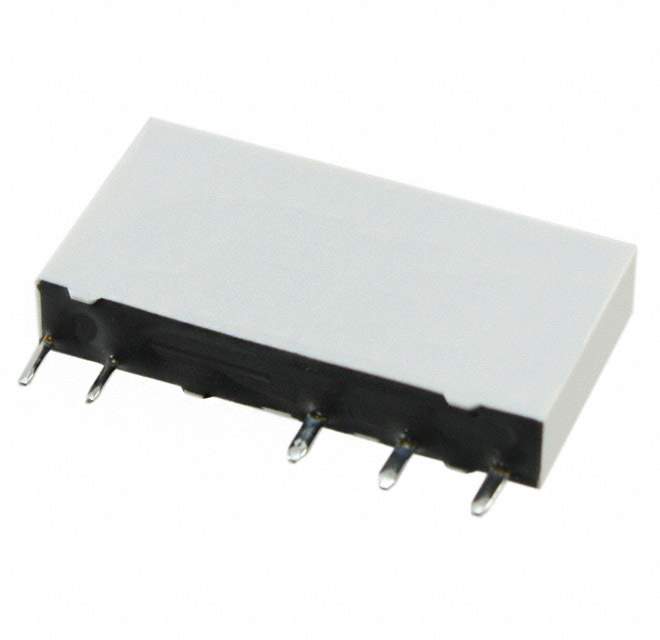

APF30324 Real Image
Same model may have multiple batches, images only for reference.

APF30324

Part No APF30324
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 6A 24V  /  General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series APF
Package Tube
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 6 A
Switching Voltage 250VAC - Max
Coil Current 7.1 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 16.8 VDC
Must Release Voltage 1.2 VDC
Operate Time 8 ms
Release Time 4 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi), Gold (Au)
Relay Type General Purpose
Coil Resistance 3.39 kOhms
Base Product Number APF303
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Other Names APF30324-ND,255-6468
Standard Package 20
Win Source Part Number 1001154-APF30324
Ultra Librarian 3D Model Ultra Librarian APF30324 CAD Model

Description

The APF30324 is a general purpose SPDT (1 Form C) relay with a coil voltage of 24VDC manufactured by Panasonic Electric Works.

  • Contact Rating (Current): 6 A
  • Switching Voltage: 250VAC - Max
  • Termination Style: PC Pin
  • Package: Tube
  • Operating Temperature Range: -40°C ~ 85°C
