Same model may have multiple batches, images only for reference.

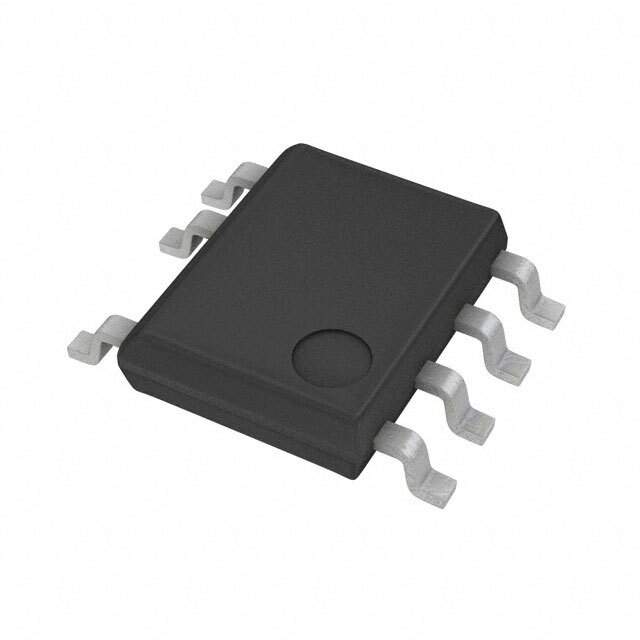

AQH0223AX Real Image
Same model may have multiple batches, images only for reference.

AQH0223AX

Part No AQH0223AX
Manufacturer Panasonic
Catalog Solid State Relays
Description RELAY SSR NON-ZC 0.3A 600V 8 SMD
Datasheet
AQH0223AX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Circuit SPST-NO (1 Form A)
Output Type AC
Load Current 300mA
Voltage - Input 1.21VDC
Voltage - Load 0 to 600 V
Mounting SMD (SMT)
Termination Style Gull Wing
Case / Package 8-SMD
Relay Type Relay
Win Source Part Number 078501-AQH0223AX
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian AQH0223AX CAD Model

Description

Features and Benefits

  • Compact size
  • High load current capacity
  • Optimal heat dissipation

The AQH0223AX is a compact solid-state relay ideal for applications requiring high load current handling and effective heat management. Its design allows for integration into space-constrained environments without compromising performance.

Applications

  • Power supply systems
  • Motor control
  • Lighting control
  • Consumer electronics

Additional Details

Designed to support high current loads efficiently, the AQH0223AX is perfect for advanced electronic designs, offering reliability and performance in demanding conditions.
