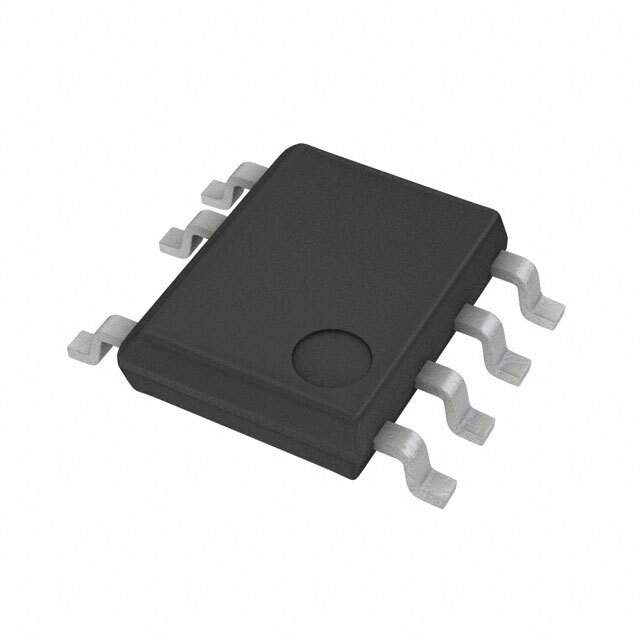

AQH3223AX

Part No AQH3223AX
Manufacturer Panasonic
Catalog Solid State Relays
Description RELAY SSR 1.2A 600V SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Circuit SPST-NO (1 Form A)
Output Type AC
Load Current 1.2A
Voltage - Input 1.21VDC
Voltage - Load 0 to 600 V
Mounting SMD (SMT)
Termination Style Gull Wing
Case / Package 8-SMD
Relay Type Relay
Win Source Part Number 089892-AQH3223AX
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian AQH3223AX CAD Model

Description

Overview

The AQH3223AX is the premium variant of the AQH3223 series, designed to meet the needs of high-end and critical applications requiring top-tier performance and reliability.

Applications

  • Medical Instrumentation
  • High-Performance Computing
  • Aerospace Systems
  • Secure Communication Networks

Features and Benefits

  • Supreme Reliability: Guarantees uninterrupted performance in mission-critical environments.
  • High-Temperature Resistance: Operates efficiently over a broad temperature range.
  • Precision Engineering: Ensures exacting standards are met for sophisticated applications.
  • Customizable Options: Flexible configurations to fit specific needs.

The AQH3223AX represents the pinnacle of design and technology within its series, offering industry-leading specifications that ensure the highest level of integrity and dependability.
