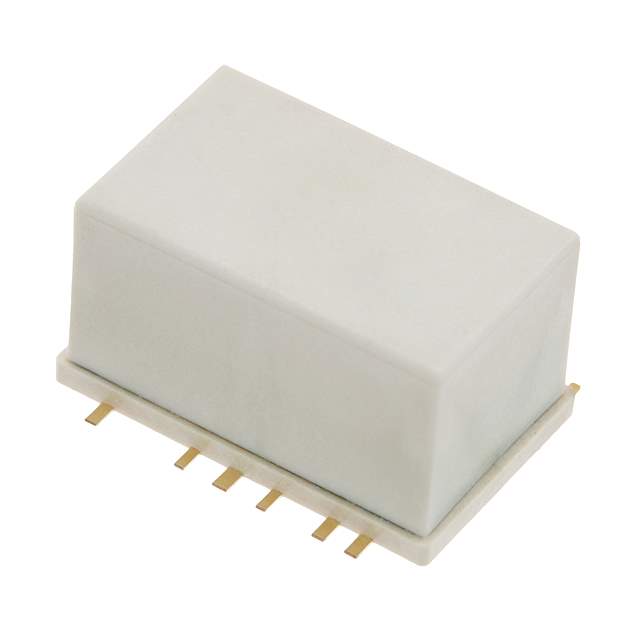

ARS10Y4H Real Image
Same model may have multiple batches, images only for reference.

ARS10Y4H

Part No ARS10Y4H
Manufacturer Panasonic
Catalog High Frequency (RF) Relays
Description RELAY RF SPDT 500MA 4.5V / 3 GHz MICROWAVE RELAYS Miniature size Lineup includes 50/75Ω type
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Panasonic Electric Works
Packaging Tube
Coil Type Non Latching
Coil Current 44.4mA
Coil Voltage 4.5VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 500mA
Switching Voltage 30VDC - Max
Must Operate Voltage 3.38 VDC
Must Release Voltage 0.45 VDC
Operate Time 10ms
Release Time 6ms
Mounting Style SMD
Termination Style Gull Wing
Temperature Range - Operating -40°C ~ 70°C
Contact Material Gold Plating
Coil Power 200mW
Coil Resistance 101 Ohms
Manufacturer Pack Quantity 40
MSL Level 4 (72 Hours)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 810532-ARS10Y4H
Ultra Librarian 3D Model Ultra Librarian ARS10Y4H CAD Model

Description

The Panasonic Electric Works 810532-ARS10Y4H is a SPDT (1 Form C) electronic component from Panasonic Electric Works.

  • Termination Style: Gull Wing
  • Mounting Style: SMD
  • Contact Material: Gold Plating
  • Coil Resistance: 101 Ohms
  • Operate Time: 10ms
  • Release Time: 6ms
  • Coil Type: Non-Latching
  • Coil Voltage: 4.5VDC
  • Contact Rating (Current): 500mA
  • Switching Voltage: 30VDC - Max
  • Coil Power: 200mW
  • Operating Temperature: -40°C to 70°C
