Same model may have multiple batches, images only for reference.

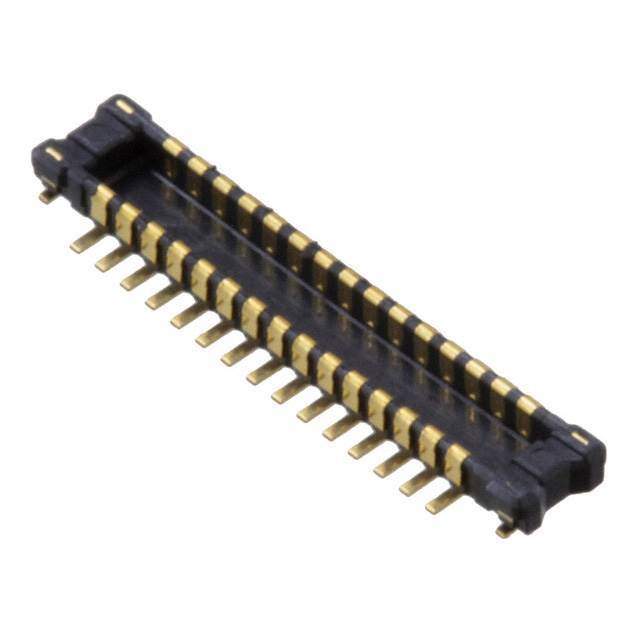

AXE630124A Real Image
Same model may have multiple batches, images only for reference.

AXE630124A

Part No AXE630124A
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN HEADER .4MM 30 POS SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Header, Outer Shroud Contacts
Number of Positions 30
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm
Height Above Board 0.026" (0.65mm)
Win Source Part Number 1020938-AXE630124A
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 500
Ultra Librarian 3D Model Ultra Librarian AXE630124A CAD Model

Description

The Panasonic Electric Works AXE630124A is a header connector with outer shroud contacts.

  • Positions: 30
  • Rows: 2
  • Pitch: 0.016" (0.40mm)
  • Contact Finish: Gold
  • Mated Stacking Height: 0.8mm
  • Height Above Board: 0.026" (0.65mm)
