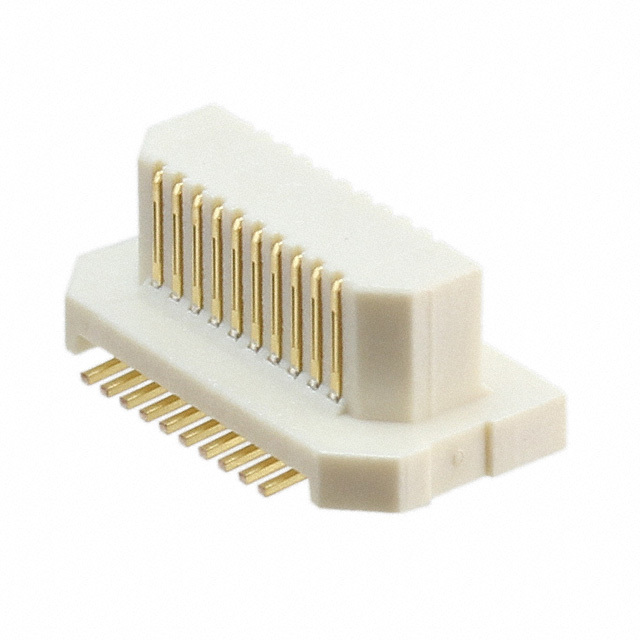

AXK6S20447M1 Panasonic – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

AXK6S20447M1

Part No AXK6S20447M1
Manufacturer Panasonic
Catalog Rectangular Connectors
Description 20 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Panasonic Electric Works
Series V
Packaging Bulk
Connector Type Receptacle, Outer Shroud Contacts
Number of Positions 20
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Type Surface Mount
Contact Finish Gold
Height Above Board 0.130" (3.30mm)
Base Product Number AXK6S20447
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1480301-AXK6S20447M1
Ultra Librarian 3D Model Ultra Librarian AXK6S20447M1 CAD Model
